LM5010AMHE/NOPB

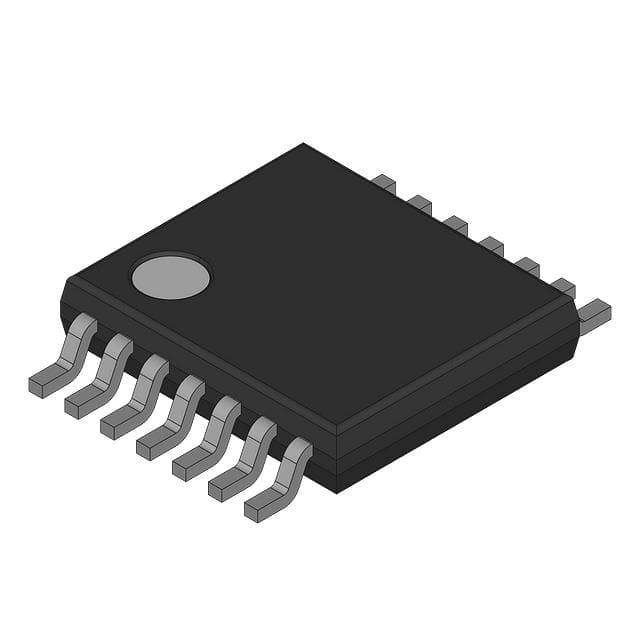

TEXAS INSTRUMENTS  LM5010AMHE/NOPB  直流-直流开关降压逐步递减稳压器, 可调, 6V-75V输入, 2.5V-70V输出, 1A输出, HTSSOP-14

The is a constant on-time non-synchronous Buck Regulator for use with secondary side post regulators. The step-down switching regulator is an enhanced version of the LM5010 with the input operating range extended to 6V minimum. The LM5010Ax features all the functions needed to implement an efficient, buck regulator capable of supplying in excess of 1A load current. This high-voltage regulator integrates an N-channel buck switch. The constant ON-time regulation scheme requires no loop compensation resulting in fast load transient response and simplified circuit implementation. The operating frequency remains constant with line and load variations due to the inverse relationship between the input voltage and the ON-time. The valley current limit detection is set at 1.25A. Additional features include VCC undervoltage lockout, thermal shutdown, gate drive undervoltage lockout and maximum duty cycle limiter.

.

Integrated high voltage bias regulator

.

No loop compensation required

.

Ultrafast transient response

.

Nearly constant operating frequency with line and load variations

.

Adjustable output voltage

.

Programmable soft-start function

.

Thermal shutdown

.

Exposed thermal pad for improved heat dissipation

.

Integrated 80V N-channel buck switch

.

2.5V Feedback voltage reference with ±2% accuracy

.

Green product and no Sb/Br
