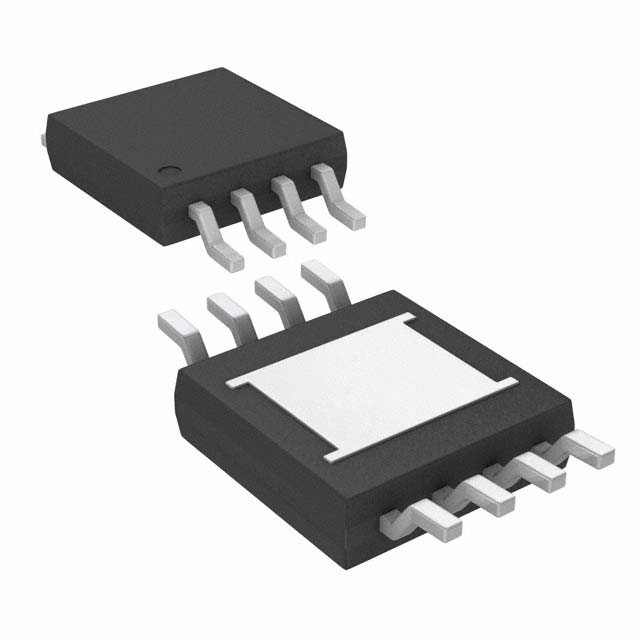

LINEAR TECHNOLOGY LTC4440AHMS8E-5#PBF 驱动器芯片, MOSFET, 高压侧, 3.2V-80V电源, 1.1A输出, 33ns延迟, MSOP-8
The is a high frequency high-side N-channel MOSFET Gate Driver designed to operate in applications with VIN voltages up to 80V. The LTC4440A-5 can also withstand and continue to function during 100V VIN transients. The powerful driver capability reduces switching losses in MOSFETs with high gate capacitances. The LTC4440A-5 pull-up has a peak output current of 1.1A and its pull-down has an output impedance of 1.85R. The LTC4440A-5 features supply independent TTL/CMOS compatible input thresholds with 350mV of hysteresis. The input logic signal is internally level-shifted to the bootstrapped supply, which may function at up to 95V above ground. The LTC4440A-5 is optimized for driving 5V logic level FETs and contains an under-voltage lockout circuit that disables the external MOSFET when activated.
电源电压DC 3.20V min
上升/下降时间 10ns, 7ns
输出接口数 1
针脚数 8
下降时间Max 70 ns
上升时间Max 100 ns
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 4V ~ 15V
电源电压Max 15 V
电源电压Min 4 V
安装方式 Surface Mount
引脚数 8
封装 MSOP-8
封装 MSOP-8
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Unknown
包装方式 Each
制造应用 Power Management, 通信与网络, Communications & Networking, 电源管理, 车用, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC4440AHMS8E-5#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC4440AMPMS8E-5#PBF 凌力尔特 | 类似代替 | LTC4440AHMS8E-5#PBF和LTC4440AMPMS8E-5#PBF的区别 |
LTC4440AIMS8E-5#PBF 凌力尔特 | 类似代替 | LTC4440AHMS8E-5#PBF和LTC4440AIMS8E-5#PBF的区别 |
LTC4440AHMS8E-5#TRPBF 凌力尔特 | 类似代替 | LTC4440AHMS8E-5#PBF和LTC4440AHMS8E-5#TRPBF的区别 |
