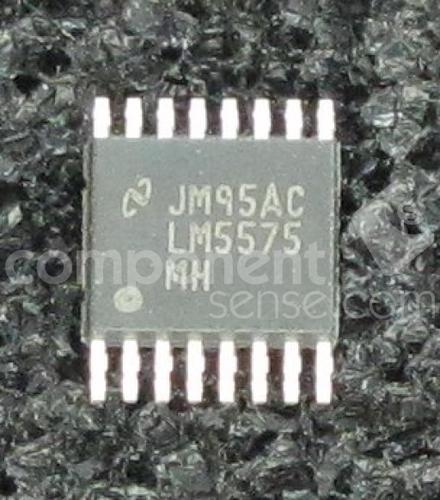

TEXAS INSTRUMENTS LM5575MHX/NOPB 直流-直流开关降压, 逐步递降稳压器, 可调, 6V-75V输入, 1.225V-70V/1.5A输出 500kHz, HTSSOP-16 新
The LM5575 is an easy to use SIMPLE SWITCHER® buck regulator which allows design engineers to design and optimize a robust power supply using a minimum set of components. Operating with an input voltage range of 6 - 75V, the LM5575 delivers 1.5A of continuous output current with an integrated 330mΩ N-Channel MOSFET. The regulator utilizes an Emulated Current Mode architecture which provides inherent line regulation, tight load transient response, and ease of loop compensation without the usual limitation of low-duty cycles associated with current mode regulators. The operating frequency is adjustable from 50kHz to 500kHz to allow optimization of size and efficiency. To reduce EMI, a frequency synchronization pin allows multiple IC’s from the LM2557x family to self-synchronize or to synchronize to an external clock. The LM5575 ensures robustness with cycle-by-cycle current limit, short-circuit protection, thermal shut-down, and remote shut-down. The device is available in a power enhanced HTSSOP-16 package featuring an exposed die attach pad for thermal dissipation. The LM5575 is supported by the full suite of WEBENCH On-Line design tools.
输出接口数 1
输出电压 1.23V ~ 70V
输出电流 1.5 A

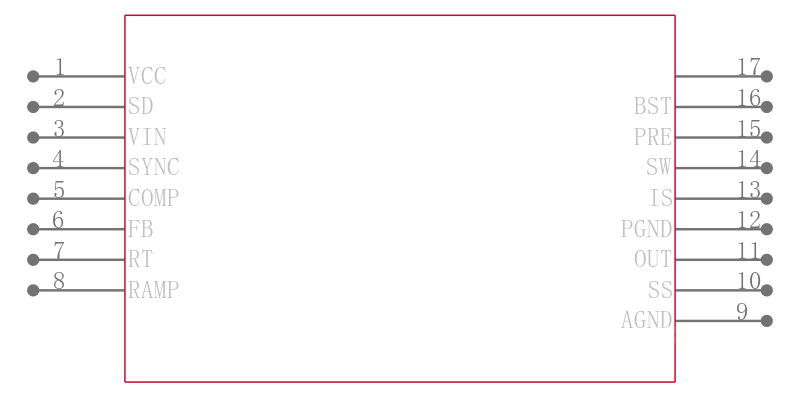

针脚数 16
静态电流 1.00 mA
调节输出数 1
开关频率 500 kHz
拓扑结构 Buck
输入电压Max 75 V
输入电压Min 6 V
输出电压Max 70 V
输出电压Min 1.225 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 6 V
电源电压Min 6 V
输入电压 75 V
安装方式 Surface Mount
引脚数 16

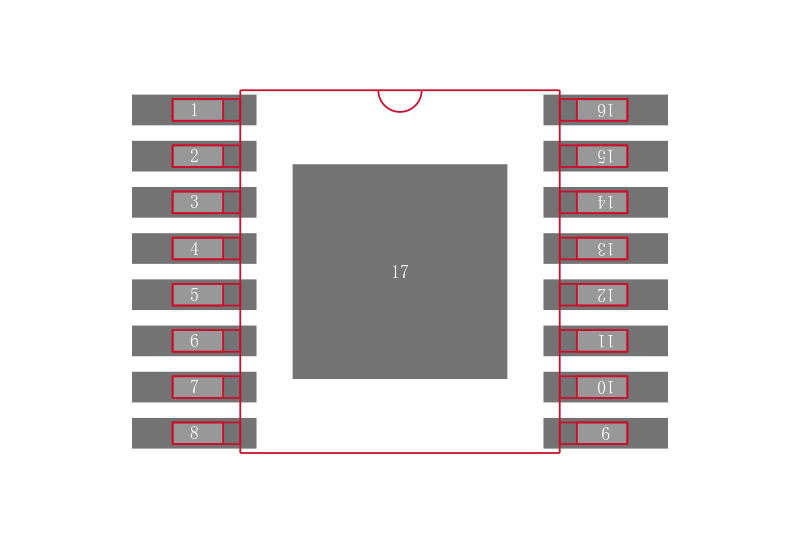

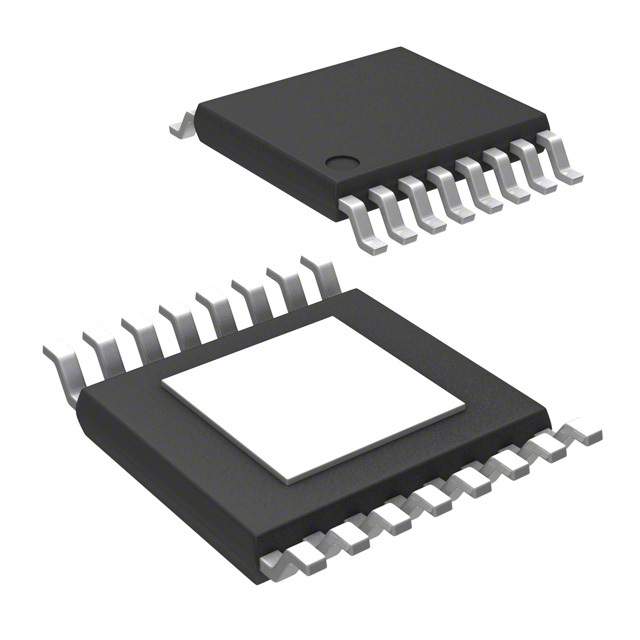

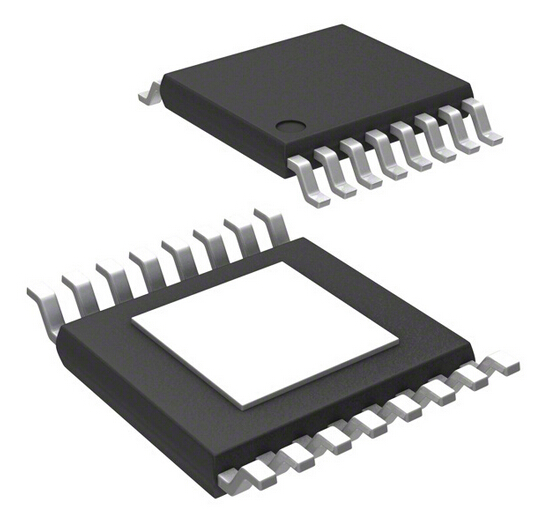

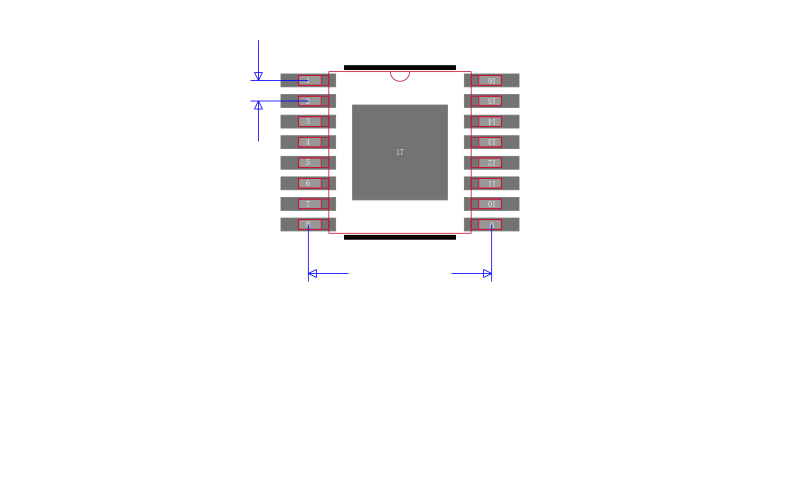

封装 HTSSOP-16
封装 HTSSOP-16
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM5575MHX/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM5575MH/NOPB 德州仪器 | 类似代替 | LM5575MHX/NOPB和LM5575MH/NOPB的区别 |
LM5575MH 德州仪器 | 类似代替 | LM5575MHX/NOPB和LM5575MH的区别 |
LM5575MHX 德州仪器 | 功能相似 | LM5575MHX/NOPB和LM5575MHX的区别 |
