LT1965ET#PBF

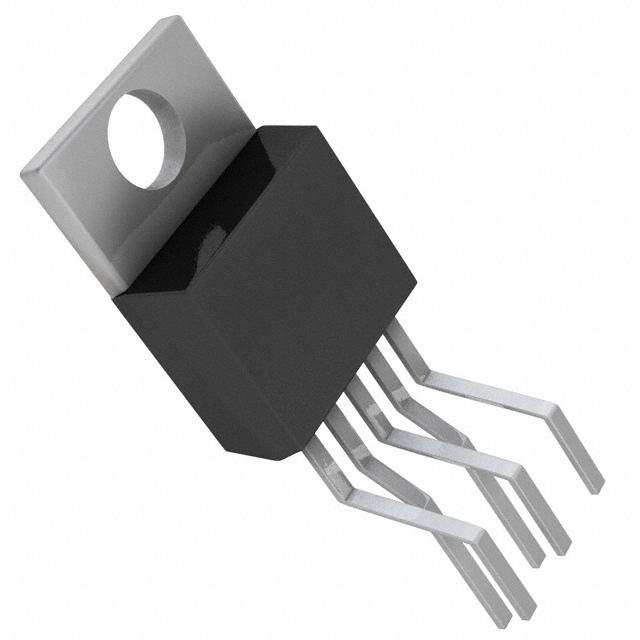

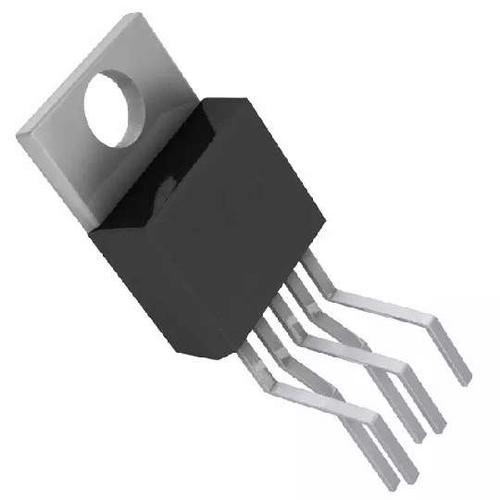

LDO Regulator Pos 1.2V to 19.5V 1.1A Automotive 5Pin5+Tab TO-220

Use the LDO linear regulator from to maintain a constant output voltage. Its typical dropout voltage at current is 0.055@1mA|0.12@100mA|0.21@500mA|0.31@1100mA V. This voltage regulation device"s single output can produce a current up to 1.1 A. This will operate at a minimum voltage of 1.8 V and a maximum voltage of 20 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 1.2 to 19.5 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 8mV and line regulation of 8mV. The maximum dropout voltage is 0.08@1mA|0.175@100mA|0.25@500mA|0.36@1100mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
