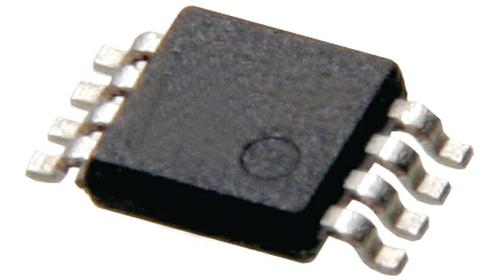

LINEAR TECHNOLOGY LTC1261LIMS8#PBF 芯片, 稳压器, 2.7至5.25V, -1.23至-5V, 8MSOP
Many components require different voltage levels to operate properly. The charge pump voltage doubler from can provide the proper voltage within a circuit. With an output that has a voltage of 0.3 to -5.3 V, this is power management at its best. Its output produces a current of 20Max mA. This device has a minimum operating supply voltage of 2.7 V and a maximum of 5.5 V. This inverting charge pump has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 5.50V max
输出接口数 1
输出电压 -5.00 V min
输出电流 20 mA
针脚数 8
开关频率 650 kHz
输入电压Max 5.25 V
输入电压Min 2.7 V
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.7V ~ 5.25V
安装方式 Surface Mount
引脚数 8
封装 MSOP-8
封装 MSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC1261LIMS8#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC1261LIMS8#TRPBF 凌力尔特 | 完全替代 | LTC1261LIMS8#PBF和LTC1261LIMS8#TRPBF的区别 |
