L6207QTR

马达/运动/点火控制器和驱动器 DMOS Dual Full Bridge Driver 5.6A

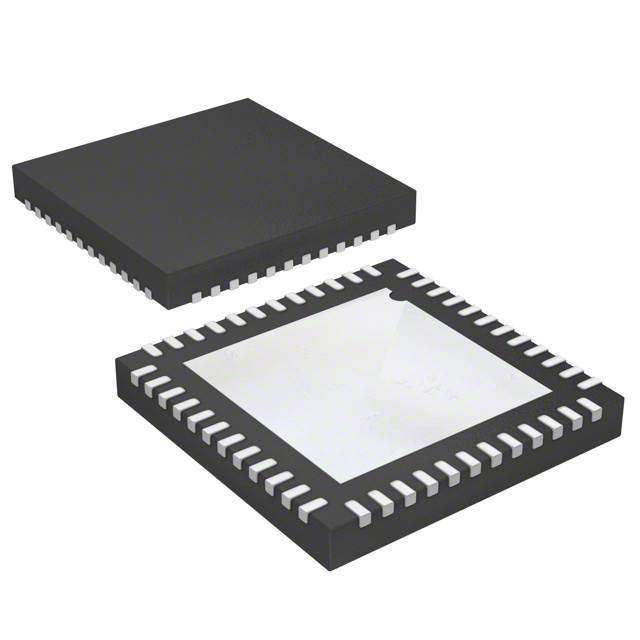

The L6207Q device is a DMOS dual full bridge driver designed for motor control applications, realized in BCDmultipower technology, which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. The device also includes two independent constant OFF time PWM current controllers that perform the chopping regulation. Available in a VFQFPN48 7 x 7 package, the L6207Q device features thermal shutdown and a non-dissipative overcurrent detection on the high-side Power MOSFETs.

**Key Features**

.

Operating supply voltage from 8 to 52 V

.

5.6 A output peak current

.

RDSon 0.3 Ω typ. value at Tj = 25 °C

.

Operating frequency up to 100 kHz

.

Non-dissipative overcurrent protection

.

Dual independent constant tOFF PWM current controllers

.

Slow decay synchronous rectification

.

Cross conduction protection

.

Thermal shutdown

.

Undervoltage lockout

.

Integrated fast freewheeling diodes
