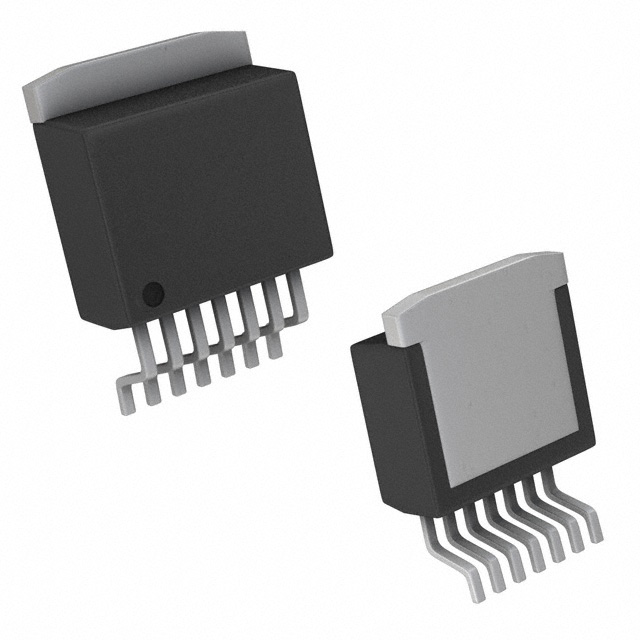

4.5V 至 40V、1A SIMPLE SWITCHER® 降压转换器 7-DDPAK/TO-263 -40 to 125
Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 1A TO-263-8, D²Pak 7 Leads + Tab, TO-263CA
得捷:
IC REG BUCK 3.3V 1A TO263-7
立创商城:
LM2598SX-3.3/NOPB
德州仪器TI:
4.5V to 40V, 1A SIMPLE SWITCHER® buck converter
艾睿:
Adjust the voltage level of your devices with this inverting and step down LM2598SX-3.3/NOPB DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 1 A. With a small input voltage of 4.5 V and a max of 40 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. This converter is 78typ % efficient. Its switching regulator has a frequency of 173 kHz. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This converter has an operating temperature range of -40 °C to 125 °C.
安富利:
Conv DC-DC Single Inv/Step Down 4.5V to 40V 8-Pin7+Tab TO-263 T/R
Chip1Stop:
Conv DC-DC Single Inv/Step Down 4.5V to 40V 8-Pin7+Tab TO-263 T/R
Verical:
Conv DC-DC 4.5V to 40V Inv/Step Down Single-Out 3.3V 1A 8-Pin7+Tab TO-263 T/R
DeviceMart:
IC REG BUCK 3.3V 1A TO263-7
Win Source:
Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 1A TO-263-8, D2Pak 7 Leads + Tab, TO-263CA
输出接口数 1
输出电压 3.3 V
输出电流 1 A
静态电流 5.00 mA
调节输出数 1
开关频率 150 kHz
拓扑结构 Buck
输入电压Max 40 V
输入电压Min 4.5 V
输出电压Min 3.3 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 4.5V ~ 40V
安装方式 Surface Mount
引脚数 8

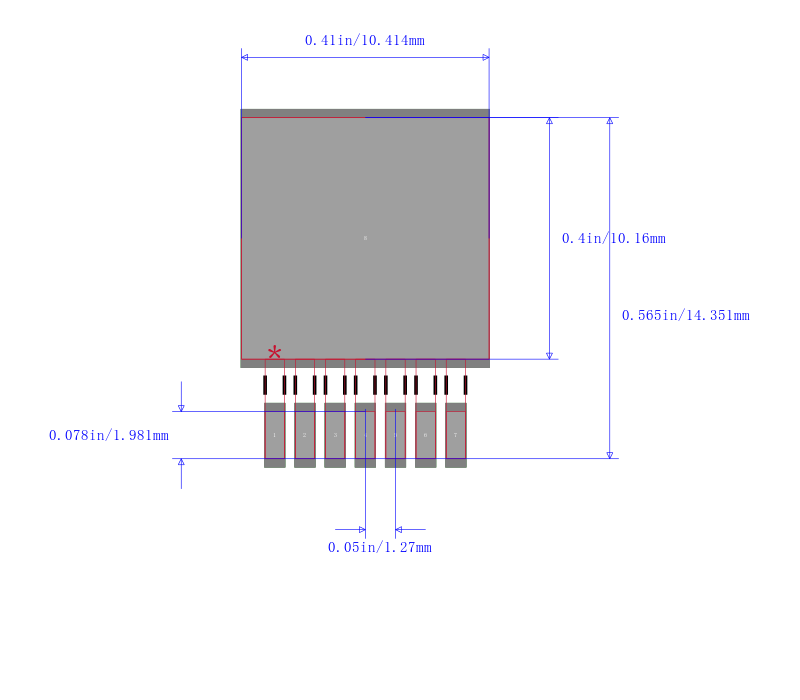

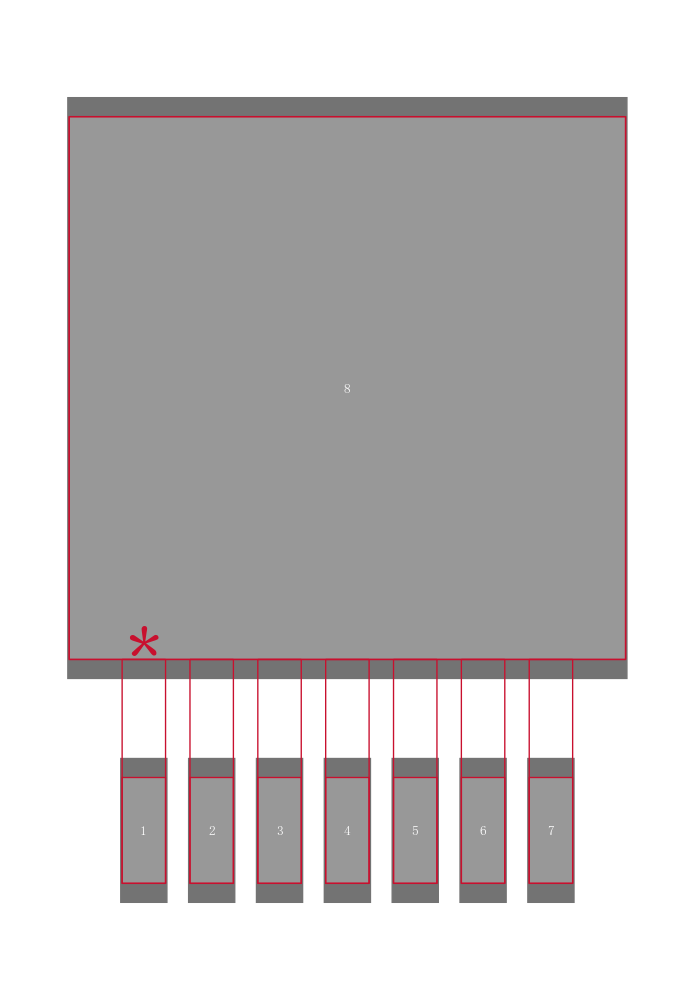

封装 TO-263-7
封装 TO-263-7
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2598SX-3.3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2598S-3.3/NOPB 德州仪器 | 完全替代 | LM2598SX-3.3/NOPB和LM2598S-3.3/NOPB的区别 |
LM2598SX-3.3 德州仪器 | 类似代替 | LM2598SX-3.3/NOPB和LM2598SX-3.3的区别 |
LM2598S-3.3 德州仪器 | 功能相似 | LM2598SX-3.3/NOPB和LM2598S-3.3的区别 |
