LGU2E331MELY

330uF ±20% 250V 1200mA Φ20mm

**Features:

**

* Withstanding 3000 Hours Application of Rated Ripple Current at 105°C**

**

* Compliant to the RoHS directive 2002/95/EC**

** **Specifications:

**

* Temperature Range: –40°C to +105°C**

**

* Rated Voltage Range: 16-450 V**

**

* Rated Capacitance Range: 47 to 47000 μF**

**

* Capacitance Tolerance: ±20% at 120 Hz, 20°C

得捷:
CAP ALUM 330UF 20% 250V SNAP

艾睿:

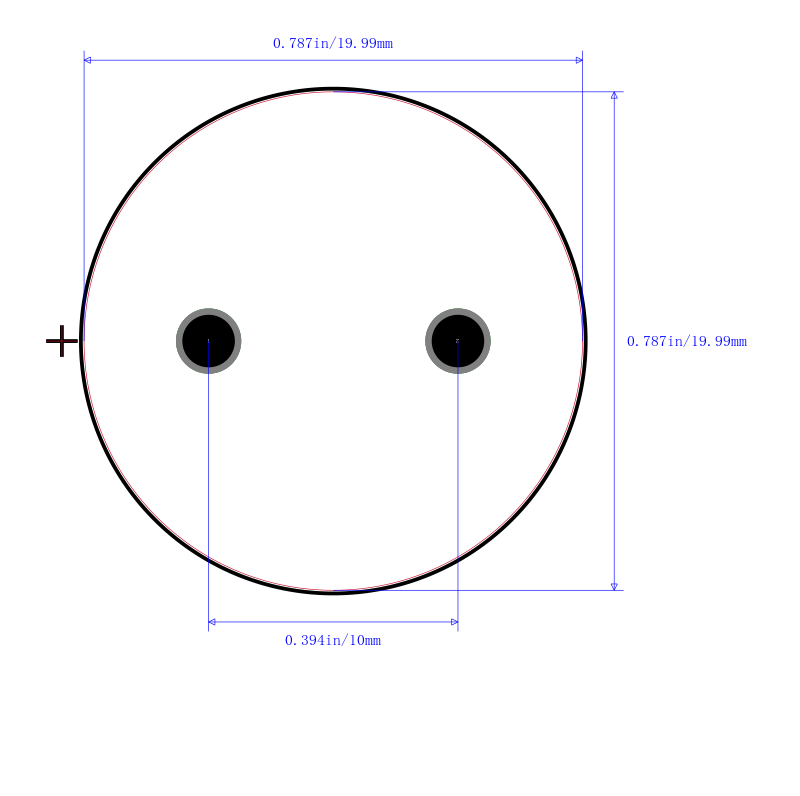

This electrolytic LGU2E331MELY aluminum capacitor from Nichicon has a relatively high ESR meaning that it easily generates high heat for a given current level. It can withstand a voltage of 250 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. This product is 40 mm tall with a diameter of 20 mm. Its leakage current is 860@5Min μA. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. The LGU2E331MELY aluminum electrolytic capacitor has a snap-in termination style. Its capacitance value is 330uF.

Allied Electronics:
Capacitor Aluminum Electrolytic Cap 330uF 250V 20% Temp.105 Snap-In 20X40mm

安富利:
Cap Aluminum 330uF 250V 20% 20 X 40mm 10mm 1200mA 3000 hr 105°C Bulk

TME:
Capacitor: electrolytic; THT; 330uF; 250VDC; Ø20x40mm; ±20%; 3000h
