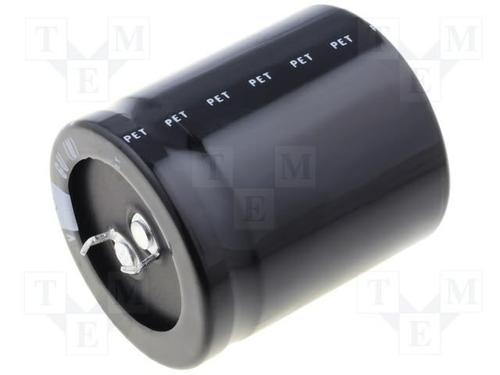

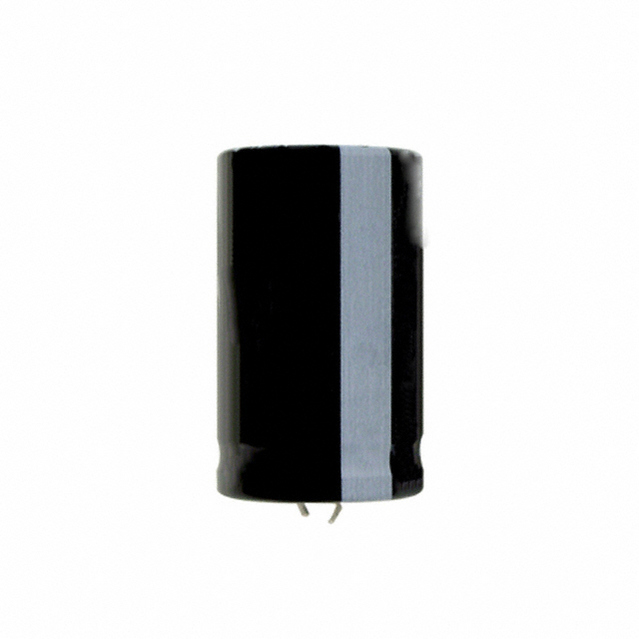

LGU2E391MELB

390uF ±20% 250V 1490mA Φ30mm

390µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C

得捷:
CAP ALUM 390UF 20% 250V SNAP

立创商城:
390uF ±20% 250V

艾睿:
Thanks to Nichicon, you&s;ll never miss low-end frequencies with their electrolytic LGU2E391MELB aluminum capacitor. It can withstand a voltage of 250 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 25 mm tall with a diameter of 30 mm. Its leakage current is 930@5Min μA. The LGU2E391MELB aluminum electrolytic capacitor has a snap-in termination style. Its capacitance value is 390uF. It has a tolerance of 20%. This part has a lead diameter of 0.8 mm and a pitch of 10 mm.

安富利:
Cap Aluminum 390uF 250V 20% 30 X 25mm 10mm 1490mA 3000 hr 105°C Bulk

TME:
Capacitor: electrolytic; THT; 390uF; 250VDC; Ø30x25mm; ±20%; 3000h

Verical:
Cap Aluminum Lytic 390uF 250V 20% 30 X 25mm Snap-In 10mm 1490mA 3000h 105C Bulk
