High Voltage 500mA, 200kHz Step-Down Switching Regulator with 100μA Quiescent Current
Adjust the voltage level of your devices with this step down DC to DC converter from . This converter"s single output can produce a current up to 0.5 A. It only needs a voltage of at least 3.3 V while not exceeding 60 V to effectively power your circuit. With an adjustable output that has a voltage of 1.25 to 54 V, this is power management at its best. It has a switching frequency of 240 kHz. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This converter has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输出电压 1.25V ~ 54V
输出电流 500 mA
开关频率 200 kHz
输入电压Max 60 V
输入电压Min 3 V
输出电压Max 57 V
输出电压Min 1.25 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 3.3V ~ 60V
安装方式 Surface Mount

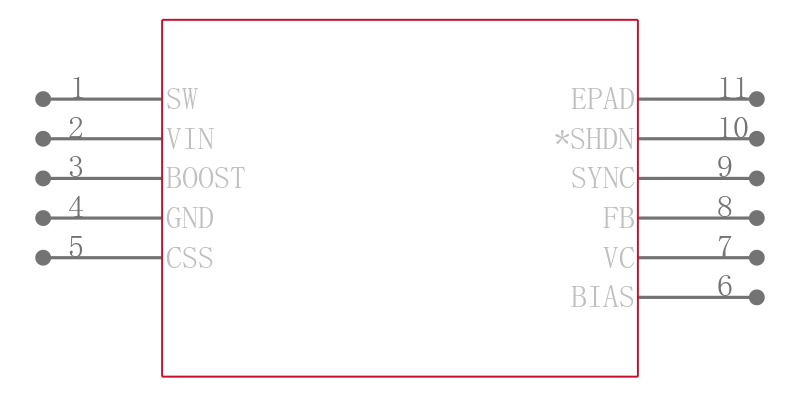

引脚数 10
封装 DFN-10
高度 0.75 mm
封装 DFN-10
工作温度 0℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3437EDD#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3437EDD#PBF 凌力尔特 | 类似代替 | LT3437EDD#TRPBF和LT3437EDD#PBF的区别 |
LT3437EDD 凌力尔特 | 功能相似 | LT3437EDD#TRPBF和LT3437EDD的区别 |
