LGGW6151MELZ35

LGGW6151MELZ35图片1
LGGW6151MELZ35概述

150uF ±20% 420V 840mA Φ22mm

铝电解器 径向,Can - 卡入式 - 105°C 时为 2000 小时


得捷:
CAP ALUM 150UF 20% 420V SNAP


立创商城:
150uF ±20% 420V


贸泽:
Aluminum Electrolytic Capacitors - Snap In 420volts 150uF 105c 22x35x10L/S


艾睿:
By implementing this electrolytic LGGW6151MELZ35 aluminum capacitor from Nichicon in your electronic circuit design you will lower costs in the long run. It can withstand a voltage of 420 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. It has a tolerance of 20%. Its capacitance value is 150uF. The LGGW6151MELZ35 aluminum electrolytic capacitor has a snap-in termination style. Its leakage current is 750@5Min μA. This product is 35 mm tall with a diameter of 22 mm.


LGGW6151MELZ35中文资料参数规格
技术参数

额定电压DC 420 V

电容 150 µF

容差 ±20 %

产品系列 LGG

纹波电流 840 mA

纹波电流高频 840mA @120Hz

纹波电流低频 1.2012A @50kHz

工作温度Max 105 ℃

工作温度Min 25 ℃

封装参数

安装方式 Through Hole

封装 Snap-In

外形尺寸

长度 35 mm

高度 35 mm

直径 Φ22mm

封装 Snap-In

物理参数

工作温度 -25℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Bulk

最小包装 50

寿命(小时) 2000 h

制造应用 通用

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

LGGW6151MELZ35引脚图与封装图
LGGW6151MELZ35引脚图
LGGW6151MELZ35封装图

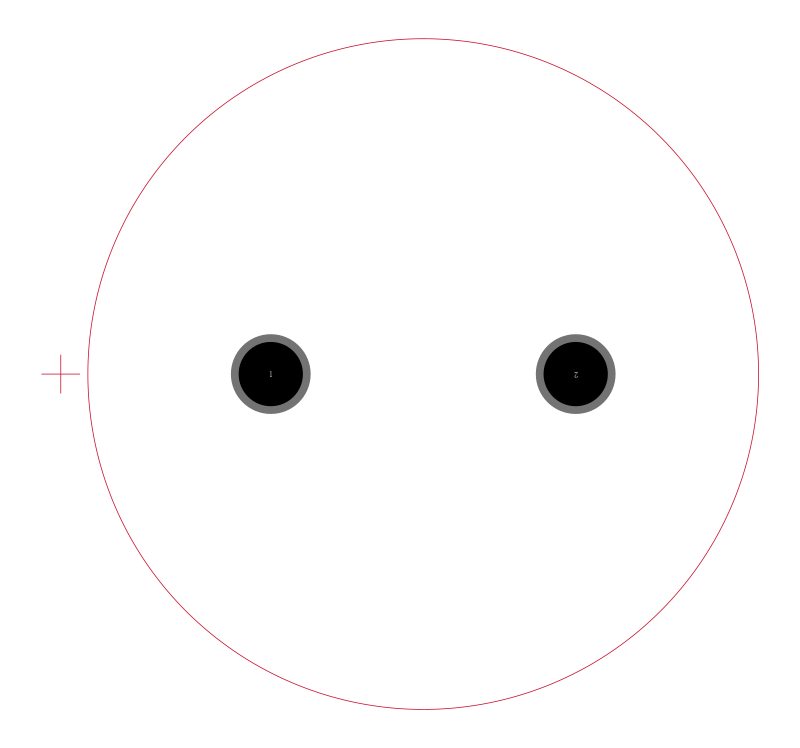

LGGW6151MELZ35封装焊盘图
在线购买LGGW6151MELZ35
型号: LGGW6151MELZ35
描述:150uF ±20% 420V 840mA Φ22mm
替代型号LGGW6151MELZ35
型号/品牌 代替类型 替代型号对比

LGGW6151MELZ35

Nichicon 尼吉康

当前型号

当前型号

LGNW6151MELZ35

尼吉康

类似代替

LGGW6151MELZ35和LGNW6151MELZ35的区别

LGUW6151MELZ

尼吉康

类似代替

LGGW6151MELZ35和LGUW6151MELZ的区别
