开关稳压器 Programmable Boost and Single Inductor Inverting DC/DC Converters with OTP
Adjust the voltage level of your devices with this step up DC to DC converter from . This converter has 2 outputs. Using the part will provide the power your application needs by requiring a voltage only of 2.55 V and not exceeding a voltage of 5.5 V. With a fixed output that has a voltage of 12|-12 V, this is power management at its best. This converter has an operating temperature range of -40 °C to 125 °C.
输出接口数 2
输出电压 ±12 V
输出电流 350mA, 600mA
静态电流 0.325 mA
输入电压Max 5.5 V
输入电压Min 2.55 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2.55 V
输入电压 2.55V ~ 5.5V
安装方式 Surface Mount

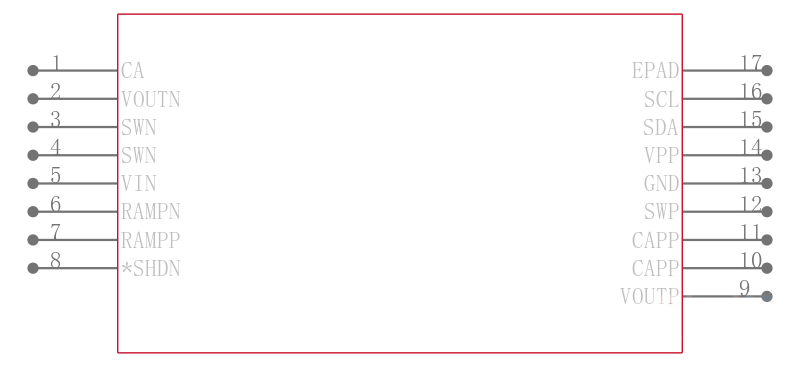

引脚数 16

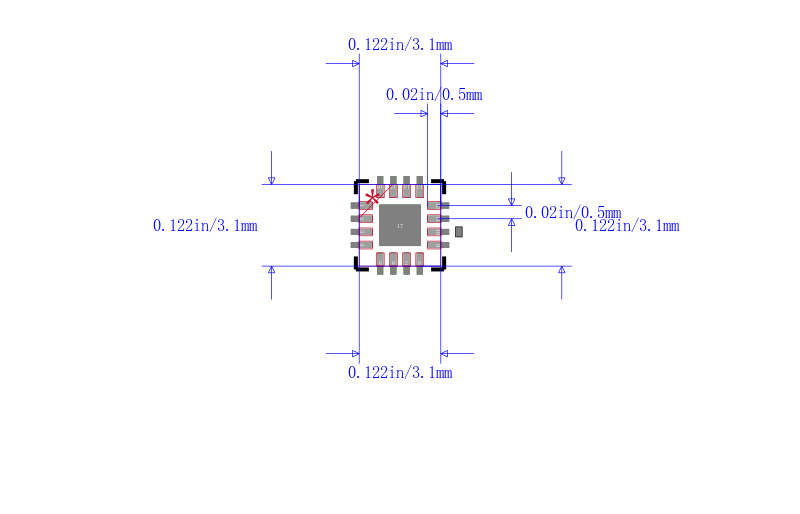

封装 QFN-16
封装 QFN-16
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT3582EUD-12#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3582EUD-12#TRPBF 凌力尔特 | 类似代替 | LT3582EUD-12#PBF和LT3582EUD-12#TRPBF的区别 |
