180uF ±20% 400V Φ22mm 30mm
180 µF 400 V 铝电解器 径向,Can - 卡入式 - 85°C 时为 2000 小时
得捷:
CAP ALUM 180UF 20% 400V SNAP
立创商城:
180uF ±20% 400V
艾睿:

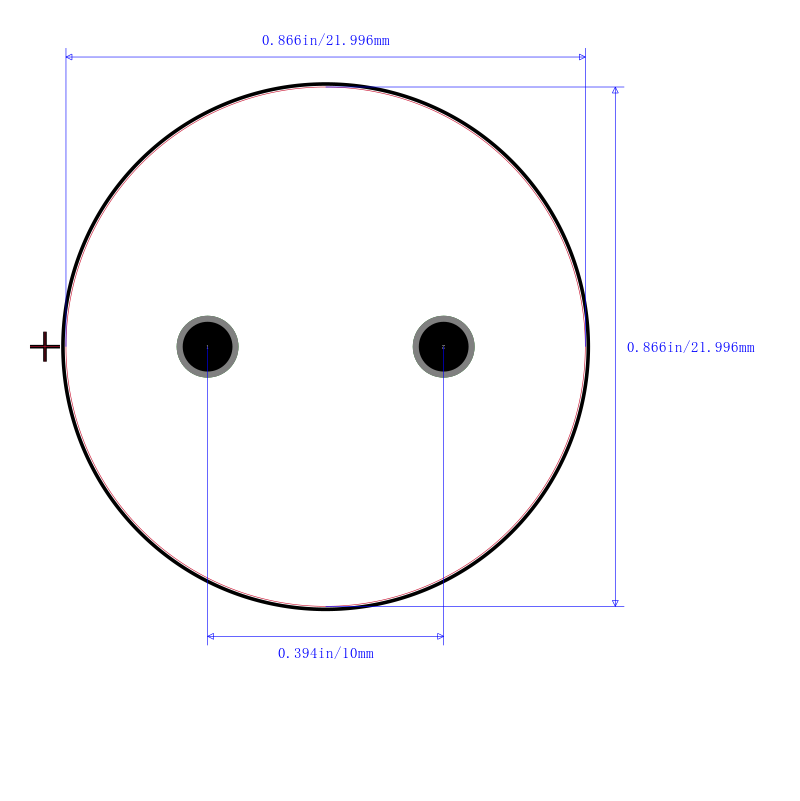

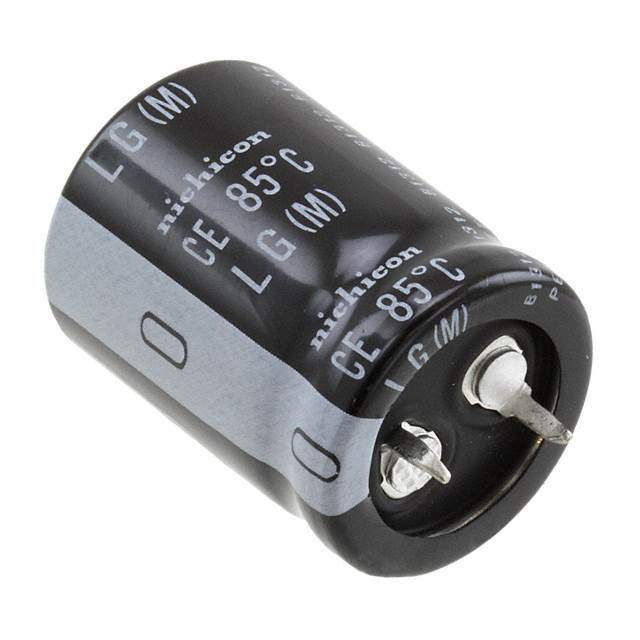

Using this electrolytic LLG2G181MELZ30 aluminum capacitor from Nichicon in your electronic circuit you&s;ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 400 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. Its leakage current is 800@5Min μA. Its capacitance value is 180uF. It has a tolerance of 20%. This product is 30 mm tall with a diameter of 22 mm. The LLG2G181MELZ30 aluminum electrolytic capacitor has a snap-in termination style.
安富利:
Cap Aluminum 180uF 400V 20% 22 X 30mm 10mm 1160mA 2000 hr 85°C Bulk
Verical:
Cap Aluminum Lytic 180uF 400V 20% 22 X 30mm Snap-In 10mm 1160mA 2000h 85C Bulk
额定电压DC 400 V
电容 180 µF
容差 ±20 %
产品系列 LLG
纹波电流 1160 mA
纹波电流高频 1.16A @120Hz
纹波电流低频 1.6588A @50kHz
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 400 V
安装方式 Through Hole
封装 Snap-In
高度 30 mm
直径 Φ22mm
封装 Snap-In
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
最小包装 50
寿命(小时) 2000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LLG2G181MELZ30 Nichicon 尼吉康 | 当前型号 | 当前型号 |
B43305A9187M060 爱普科斯 | 类似代替 | LLG2G181MELZ30和B43305A9187M060的区别 |
B43305A9187M062 爱普科斯 | 类似代替 | LLG2G181MELZ30和B43305A9187M062的区别 |
B43305A9187M067 爱普科斯 | 类似代替 | LLG2G181MELZ30和B43305A9187M067的区别 |
