LINEAR TECHNOLOGY LTC3553EUD#PBF 芯片, USB电源管理器, 锂离子充电, 20QFN
The is a micropower USB Power Manager with Li-ion charger, LDO and buck regulator. It includes a PowerPath manager with automatic load prioritization, a battery charger, an ideal diode and numerous internal protection features. Designed specifically for USB applications, the LTC3553 power manager automatically limits input current to a maximum of either 100 or 500mA. Battery charge current is automatically reduced such that the sum of the load current and the charge current does not exceed the selected input current limit. The LTC3553 also includes a synchronous buck regulator, a low dropout linear regulator LDO and a pushbutton controller with all supplies enabled in standby mode, the quiescent current drawn from the battery is only 12µA.
电源电压DC 5.50 V
供电电流 12 µA
针脚数 20
调节输出数 3
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 5.5 V
安装方式 Surface Mount

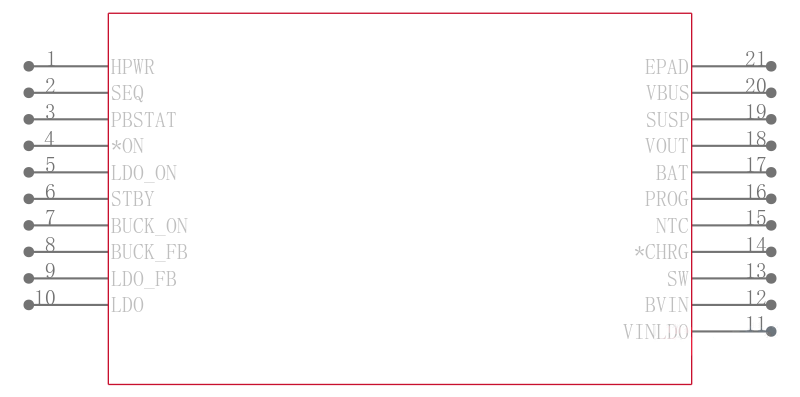

引脚数 20
封装 QFN-20
封装 QFN-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
制造应用 Portable Devices, Portable Devices, Consumer Electronics, Medical, 便携式器材, 消费电子产品, Consumer Electronics, 医用, Medical, 手持/移动设备
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3553EUD#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3553EUD#TRPBF 凌力尔特 | 功能相似 | LTC3553EUD#PBF和LTC3553EUD#TRPBF的区别 |
