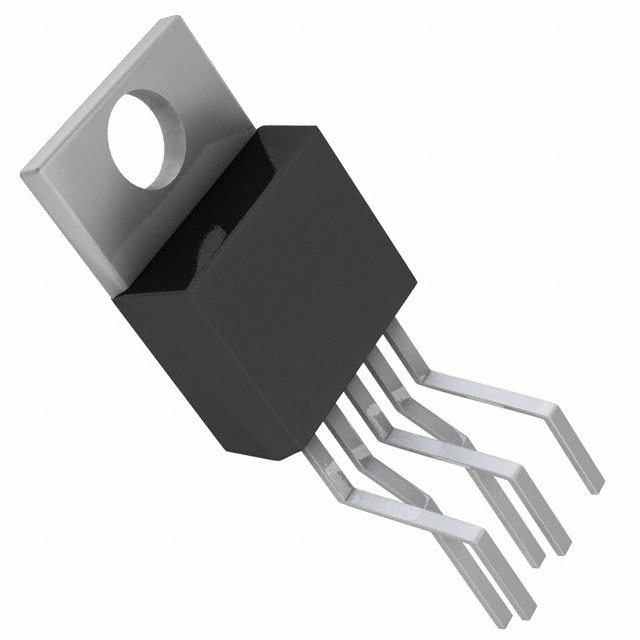

LDO Regulator Pos 1.8V 1.5A Automotive 5Pin5+Tab TO-220 Tube
Make a theoretical system actual by providing stable voltages with this LDO linear regulator from . Its typical dropout voltage at current is 0.02@1mA|0.1@100mA|0.19@500mA|0.34@1.5A V. This voltage regulation device"s single output can produce a current up to 1.5 A. This will operate at a minimum voltage of 1.9 V and a maximum voltage of 20 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. At a load regulation of 10mV and line regulation of 10mV your circuit is capable of maintaining a constant voltage level at your output. The maximum dropout voltage is 0.06@1mA|0.17@100mA|0.27@500mA|0.45@1.5A V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
输出接口数 1
输入电压DC 20.0V max
输出电压 1.8 V
输出电流 1.5 A
跌落电压 0.1V @100mA,0.19V @500mA,0.02V @1mA,0.34V @1.5A
输入电压Max 20 V
输入电压Min 1.9 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 ≤20 V
安装方式 Through Hole
引脚数 5
封装 TO-220-5
封装 TO-220-5
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1963ET-1.8#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1963AET-1.8#PBF 亚德诺 | 功能相似 | LT1963ET-1.8#PBF和LT1963AET-1.8#PBF的区别 |
LT1963AET-1.8 亚德诺 | 功能相似 | LT1963ET-1.8#PBF和LT1963AET-1.8的区别 |
LT1963ET-1.8 亚德诺 | 功能相似 | LT1963ET-1.8#PBF和LT1963ET-1.8的区别 |
