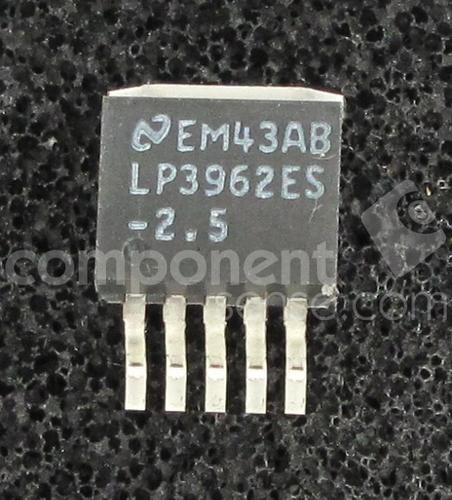

LP3962ES-2.5

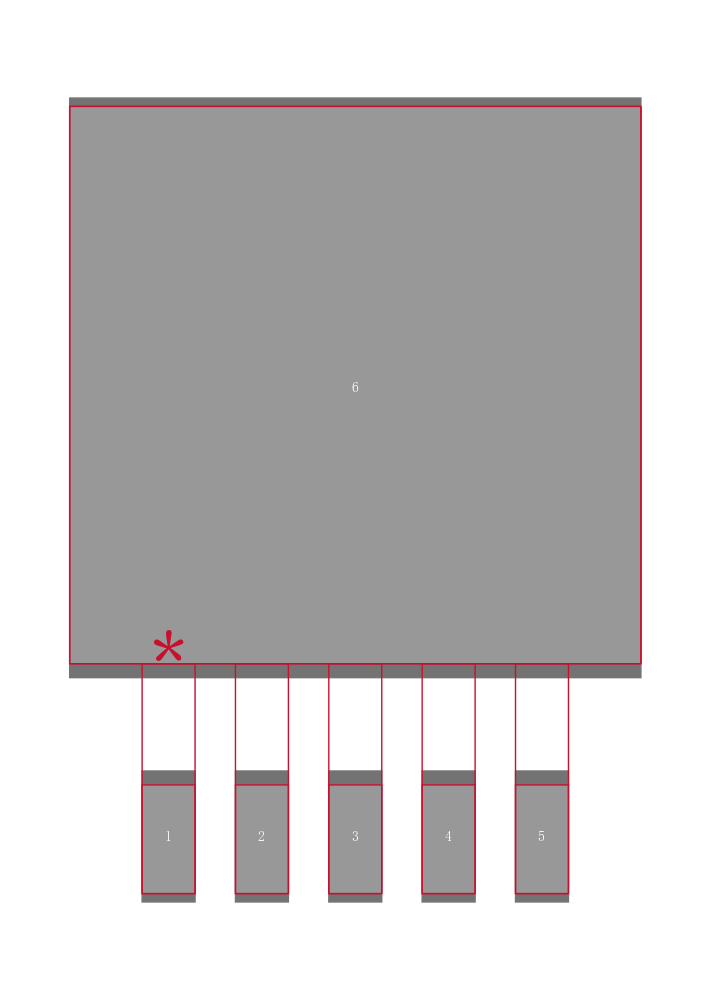

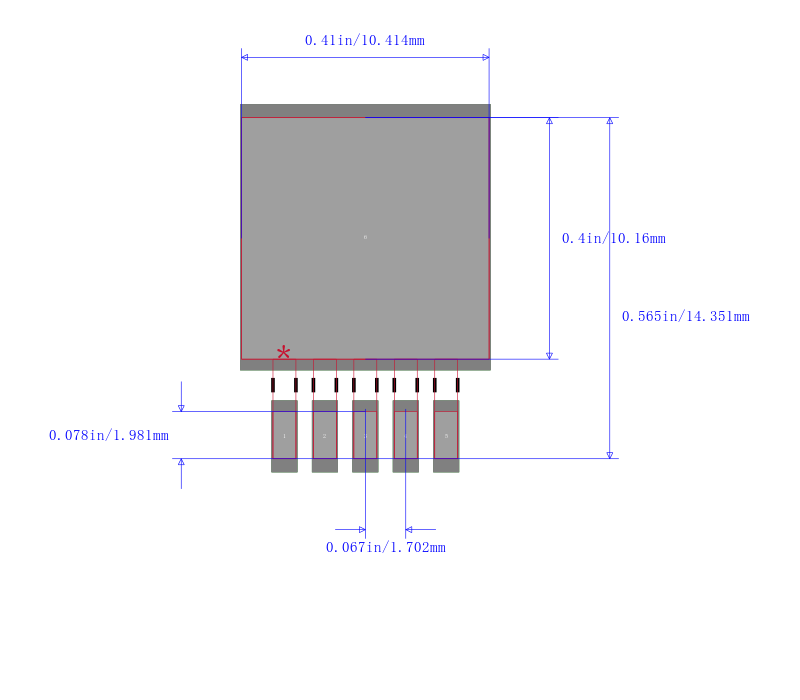

具有使能功能的 1.5A、高精度、低压降稳压器 5-DDPAK/TO-263 -40 to 125

DESCRIPON

The LP3962/LP3965 series of fast ultra low-dropout linear regulators operate from a +2.5V to +7.0V input supply. Wide range of preset output voltage options are available. These ultra low dropout linear regulators respond very fast to step changes in load which makes them suitable for low voltage microprocessor applications. The LP3962/LP3965 are developed on a CMOS process which allows low quiescent current operation independent of output load current. This CMOS process also allows the LP3962/LP3965 to operate under extremely low dropout conditions.

FEATURES

• Ultra Low Dropout Voltage

• Low Ground Pin Current

• Load Regulation of 0.04%

• 15µA Quiescent Current in Shutdown Mode

• Specified Output Current of 1.5A DC

• Available in SOT-223,SFM/TO-263 and TO-220 Packages

• Output Voltage Accuracy ± 1.5%

• Error Flag Indicates Output Status LP3962

• Sense Option Improves Better Load Regulation LP3965

• Extremely Low Output Capacitor Requirements

• Overtemperature/Overcurrent Protection

• −40°C to +125°C Junction Temperature Range

APPLICATIONS

• Microprocessor Power Supplies

• GTL, GTL+, BTL, and SSTL Bus Terminators

• Power Supplies for DSPs

• SCSI Terminator

• Post Regulators

• High Efficiency Linear Regulators

• Battery Chargers

• Other Battery Powered Applications
