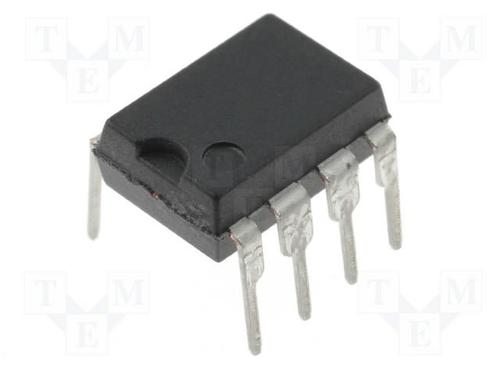

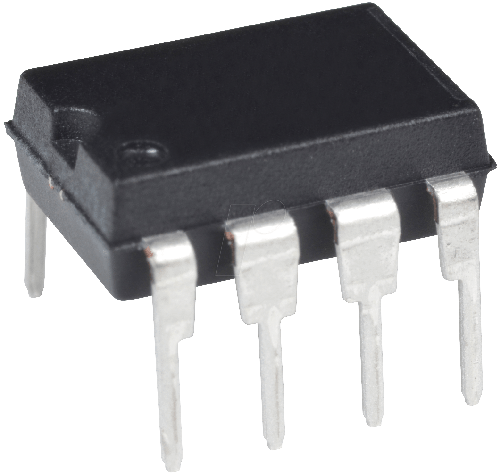

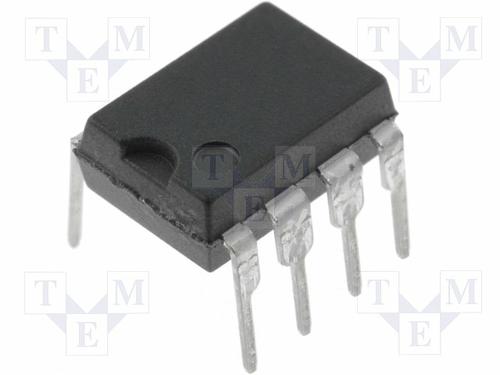

V-Ref Precision 5V 10mA 8Pin PDIP N
Even in the event of large power supply variations, this voltage reference power management device from can produce and maintain a precise DC voltage. It has an initial accuracy of 1%. By working with a maximum input voltage of 40 V, this is the best way to control the power in your circuit. With an output that has a voltage of 5 V, this is power management at its best. This voltage reference circuit supports series topology. Operate at a constant current by utilizing the load regulation of 100ppm/mA and line regulation of 12ppm/V. This voltage reference circuit has an operating temperature range of 0 °C to 70 °C. It runs with a maximum temperature coefficient of 20ppm/°C.
容差 ±1 %
输入电压DC 7.20V ~ 40.0V
输出电压 5 V
输出电流 10 mA
供电电流 1.5 mA
通道数 1
静态电流 1.20 mA
输入电压Max 40 V
输出电压Min 5 V
输出电流Max 10 mA
工作温度Max 70 ℃
工作温度Min 0 ℃
精度 ±0.5 %
输入电压 7.2V ~ 40V
安装方式 Through Hole
引脚数 8
封装 DIP-8
封装 DIP-8
工作温度 0℃ ~ 70℃ TA
温度系数 ±20 ppm/℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
