470uF ±20% 250V 1650mA Φ22mm

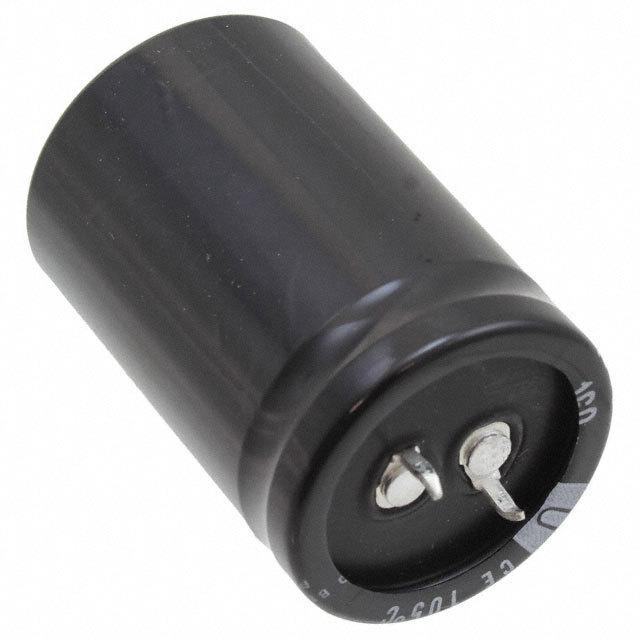

This electrolytic aluminum capacitor from has a relatively high equivalent series resistance which allows it to generate high heat for a given current level. It can withstand a voltage of 250 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. Its capacitance value is 470uF. This product is 50 mm tall with a diameter of 22 mm. Its leakage current is 1020@5Min μA. The LGU2E471MELZ aluminum electrolytic capacitor has a snap-in termination style.
额定电压DC 250 V
工作电压 250 VDC
电容 470 µF
容差 ±20 %
产品系列 LGU
纹波电流 1650 mA
纹波电流高频 1.65A @120Hz
纹波电流低频 2.475A @50kHz
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 250 V
安装方式 Through Hole
封装 Snap-In
高度 50 mm
直径 22.0 mm
封装 Snap-In
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 50
寿命(小时) 3000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LGU2E471MELZ Nichicon 尼吉康 | 当前型号 | 当前型号 |
ECO-S2EB471BA 松下 | 功能相似 | LGU2E471MELZ和ECO-S2EB471BA的区别 |
ECOS2EB471BA 松下 | 功能相似 | LGU2E471MELZ和ECOS2EB471BA的区别 |
