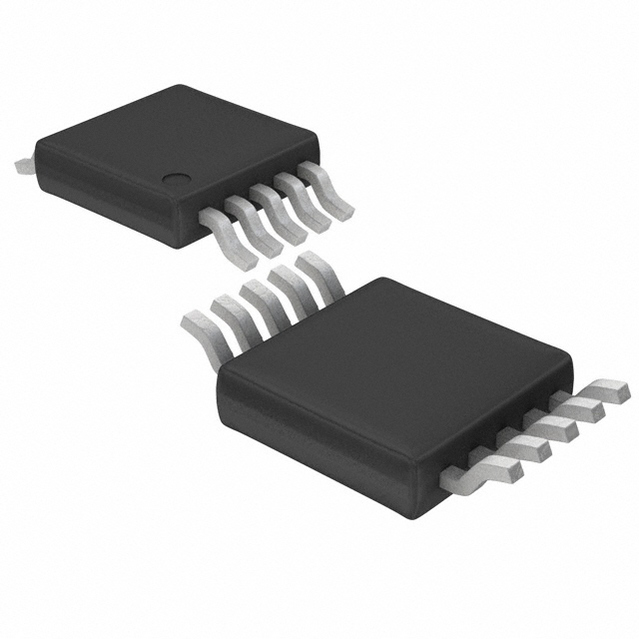

Current Mode PWM Controller 50kHz to 1000kHz Automotive 10Pin MSOP T/R
With this current controller, developed by , easily manage varying levels of output voltage entering your circuit. This current mode controller supports boost|buck|flyback topology. It has single PWM output. You can operate this at a switching frequency of 50 to 1000 kHz. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This current mode controller"s maximum duty cycle is 97 %. This device has a minimum operating supply voltage of 2.5 V and a maximum of 36 V. This current mode controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 1
上升时间 17 ns
开关频率 50kHz ~ 1MHz
占空比 97 %
最大占空比 92 %
下降时间 8 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.5V ~ 36V
输入电压 2.5V ~ 36V
安装方式 Surface Mount
引脚数 10
封装 MSOP-10
高度 0.86 mm
封装 MSOP-10
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC1871EMS#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC1871EMS#PBF 凌力尔特 | 类似代替 | LTC1871EMS#TRPBF和LTC1871EMS#PBF的区别 |
