PWM 控制器 2MHz 和更高版本,Texas Instruments### PWM Pulse Width Modulation Controllers, Texas Instruments
PWM 控制器 2MHz 和更高版本,Texas Instruments
### PWM Pulse Width Modulation Controllers, Texas Instruments
得捷:
DUAL SWITCHING CONTROLLER, CURRE
欧时:
### PWM 控制器 2MHz 和更高版本,Texas Instruments### PWM Pulse Width Modulation Controllers, Texas Instruments
艾睿:
Voltage Mode PWM Controller 60mA 16-Pin TSSOP Tube
Chip1Stop:
Voltage Mode PWM Controller 60mA 16-Pin TSSOP T/R
Verical:
Voltage Mode PWM Controller 60mA 16-Pin TSSOP Tube
DeviceMart:
IC REG CTRLR PWM CM/VM 16-TSSOP
输出接口数 2
输出电压 7.75 V
输出电流 1.2 A
静态电流 3.00 mA
上升时间 15 ns
开关频率 200kHz, 508kHz
拓扑结构 Full-Bridge, Half-Bridge, Push-Pull
占空比 88 %
下降时间 13 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 13V ~ 100V
安装方式 Surface Mount
引脚数 16

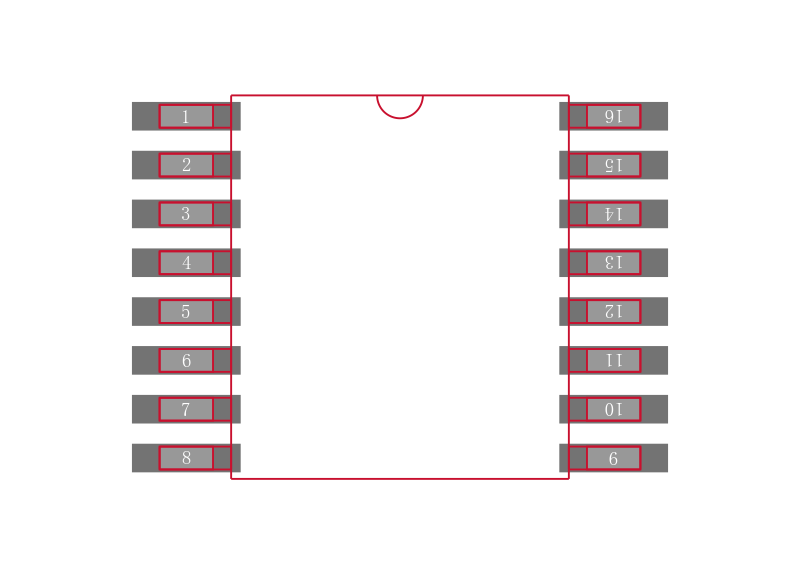

封装 TSSOP-16
长度 5 mm
宽度 4.4 mm
高度 0.9 mm
封装 TSSOP-16
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM5037MT/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM25037MTX/NOPB 德州仪器 | 类似代替 | LM5037MT/NOPB和LM25037MTX/NOPB的区别 |
LM25037MT/NOPB 德州仪器 | 类似代替 | LM5037MT/NOPB和LM25037MT/NOPB的区别 |
LM5037MTX/NOPB 德州仪器 | 类似代替 | LM5037MT/NOPB和LM5037MTX/NOPB的区别 |
