LTC3807EUDC#PBF

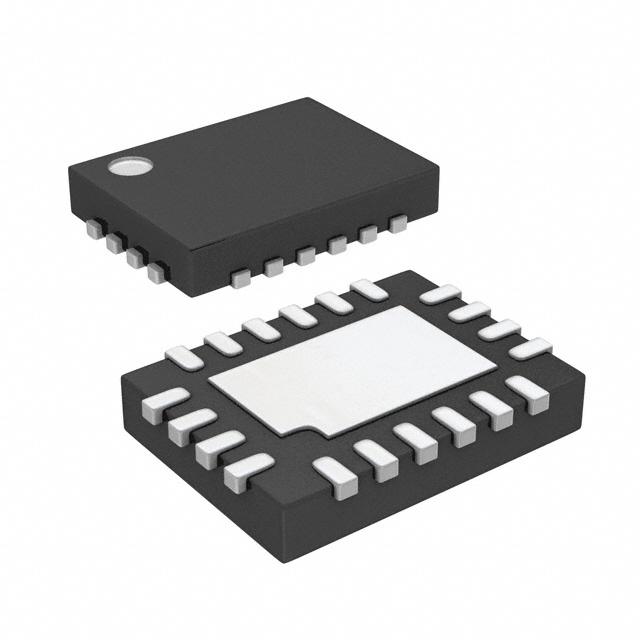

LINEAR TECHNOLOGY LTC3807EUDC#PBF DC-DC Controller, High Performance, 4V to 38V, 1 Output, Synchronous Buck, 900kHz, QFN-20

The is a high-performance step-down switching regulator DC/DC Controller that drives an all N-channel synchronous power MOSFET stage. The constant frequency current-mode architecture allows a phase-lockable frequency of up to 750kHz. The 50µA no-load quiescent current extends operating run time in battery-powered systems. OPTI-LOOP® compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC3807 features a precision 0.8V reference and power good output indicator. A wide 4 to 38V input supply range encompasses a wide range of intermediate bus voltages and battery chemistries. The output voltage of the LTC3807 can be programmed between 0.8V to 24V. The TRACK/SS pin ramps the output voltages during start-up. Current foldback limits MOSFET heat dissipation during short-circuit conditions. The PLLIN/MODE pin selects among burst mode operation, pulse-skipping mode, or continuous conduction mode at light loads.

.

50µA Low operating

.

Selectable continuous, pulse-skipping or low ripple burst mode operation at light load

.

Selectable current limit

.

99% Duty cycle very low dropout operation

.

Adjustable output voltage soft-start or tracking

.

Power good output voltage monitor

.

Output overvoltage protection

.

14µA Low shutdown

.

Internal LDO powers gate drive from VIN or EXTVCC

.

No current fold back during start-up
