LGU1C183MELB

18mF ±20% 16V 3000mA Φ30mm

18000µF 16V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C

立创商城:
18000uF ±20% 16V

得捷:
CAP ALUM 18000UF 20% 16V SNAP

贸泽:
Aluminum Electrolytic Capacitors - Snap In 16volts 18000uF 105c 30x30x10L/S

艾睿:

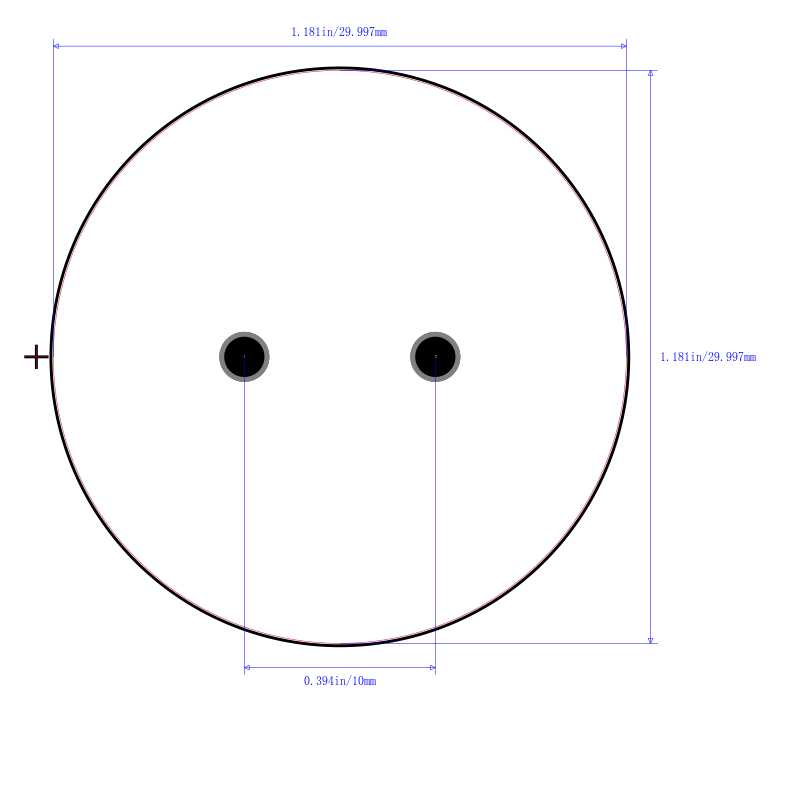

If you need to filter lower signal frequencies, then this electrolytic LGU1C183MELB aluminum capacitor, developed by Nichicon, is the tool you need. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 18000uF. The LGU1C183MELB aluminum electrolytic capacitor has a snap-in termination style. This product is 30 mm tall with a diameter of 30 mm. It has a tolerance of 20%. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. Its leakage current is 1600@5Min μA.

安富利:
Cap Aluminum 18000uF 16V 20% 30 X 30mm 10mm 3000mA 3000 hr 105°C Bulk

Chip1Stop:
Cap Aluminum Lytic 18000uF 16V 20% 30 X 30mm Snap-In 10mm 3000mA 3000h 105℃ Bulk
