LDO Regulator Pos 3.75V to 30V 0.15A Automotive 8Pin SOIC N
This LDO linear regulator developed by keeps the power stable! Its typical dropout voltage at current is 0.13@1mA|0.42@150mA|0.3@50mA|0.37@100mA V. This voltage regulation device"s single output can produce a current up to 0.15 A. This will operate at a minimum voltage of -30 V and a maximum voltage of 36 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 3.75 to 30 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of -25mV and line regulation of 10mV. Its polarity is positive. The maximum dropout voltage is 0.16@1mA|0.35@50mA|0.45@100mA|0.55@150mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输入电压DC 20.0V max
输出电压 3.75V ~ 30V
输出电流 150 mA
跌落电压 0.13V @1mA,0.42V @150mA,0.3V @50mA,0.37V @100mA
输入电压Max 36 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 4.17V ~ 30V
安装方式 Surface Mount

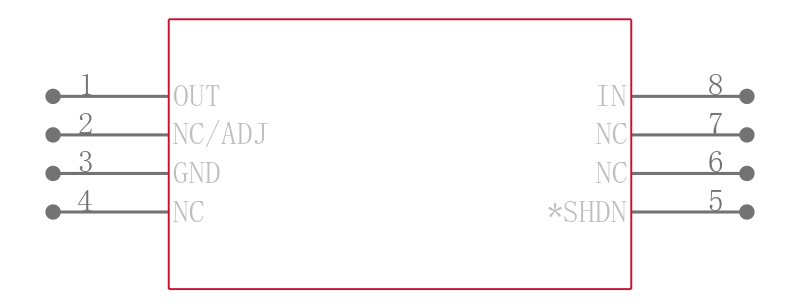

引脚数 8
封装 SOIC-8
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1121AHVIS8#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1121AHVIS8#TRPBF 凌力尔特 | 完全替代 | LT1121AHVIS8#PBF和LT1121AHVIS8#TRPBF的区别 |
LT1121AHVCS8 凌力尔特 | 类似代替 | LT1121AHVIS8#PBF和LT1121AHVCS8的区别 |
