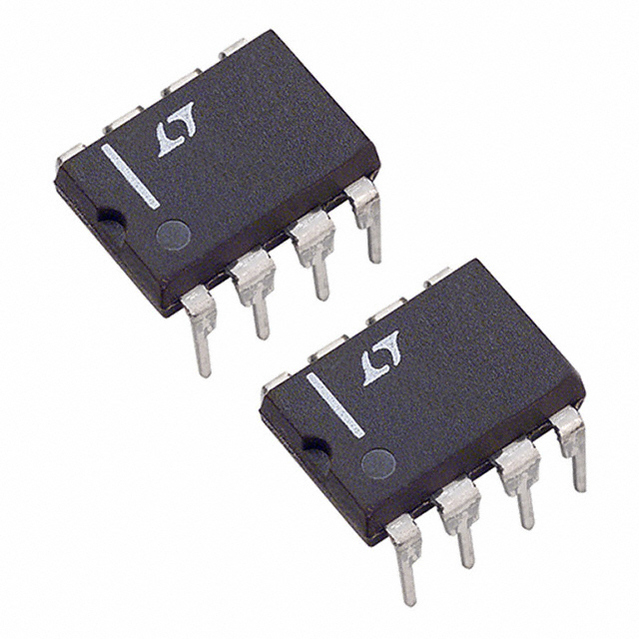

LINEAR TECHNOLOGY LT1676CN8#PBF 直流-直流开关降压逐步递减稳压器, 可调, 7.4V-60V输入, 1.24V-51V输出, 700mA输出, DIP-8
The is a high efficiency buck/step-down Switching Regulator contains several features to enhance efficiency. The monolithic die includes all oscillator, control and protection circuitry. The part can accept input voltages as high as 60V and contains an output switch rated at 700mA peak current. Current-mode control offers excellent dynamic input supply rejection and short-circuit protection. The internal control circuitry is normally powered via the VCC pin, thereby minimizing power drawn directly from the VIN supply. The action of the LT1676 switch circuitry is also load dependent. At medium to high loads, the output switch circuitry maintains high rise time for good efficiency. At light loads, rise time is deliberately reduced to avoid pulse skipping behaviour.
频率 100 kHz
输出接口数 1
输出电压 1.24V ~ 51V
输出电流 700 mA
针脚数 8
跌落电压 2.8 V
开关频率 115 kHz
拓扑结构 Buck
输入电压Max 60 V
输入电压Min 7.4 V
输出电压Max 51 V
输出电压Min 1.24 V
输出电流Max 0.7 A
工作温度Max 125 ℃
工作温度Min 0 ℃
电源电压Min 7.4 V
输入电压 7.4V ~ 60V
安装方式 Through Hole
引脚数 8
封装 DIP-8
封装 DIP-8
工作温度 0℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 车用, Automotive, Communications & Networking, 电源管理, Power Management, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1676CN8#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1676IN8#PBF 亚德诺 | 功能相似 | LT1676CN8#PBF和LT1676IN8#PBF的区别 |
LT1676CN8 亚德诺 | 功能相似 | LT1676CN8#PBF和LT1676CN8的区别 |
