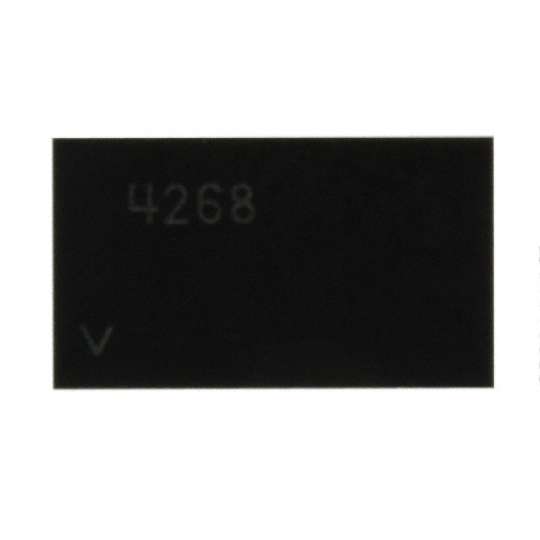

LINEAR TECHNOLOGY LTC4268CDKD-1#PBF Power Over Ethernet POE Controller, 18V/6.4mA, 100kHz Switch/Clock, -38.9V UVLO Threshold, DFN-32
Trying to cut costs? Look no further than the alternative to costly AC outlets and use the power over Ethernet controller from . This POE controller has a minimum operating temperature of 0 °C and a maximum of 70 °C.
艾睿:
LTC4268-1 - High Power PD with Synchronous NoOpto Flyback Controller
Chip1Stop:
Powered Device Controller and Switching Regulator 32-Pin DFN EP
Newark:
# LINEAR TECHNOLOGY LTC4268CDKD-1#PBF Power Over Ethernet POE Controller, 18V/6.4mA, 100kHz Switch/Clock, -38.9V UVLO Threshold, DFN-32
DeviceMart:
IC POE 35W PD INTERFACE 32-DFN
频率 100 kHz
输入电压DC 18.0 V
供电电流 6.40 mA
通道数 1
占空比 88 %
额定功率Max 35 W
最大占空比 88 %
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 2.7V ~ 16.5V
输入电压 18 V
安装方式 Surface Mount
引脚数 32
封装 DFN-32
长度 7 mm
高度 0.75 mm
封装 DFN-32
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC4268CDKD-1#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC4268CDKD-1#TRPBF 凌力尔特 | 完全替代 | LTC4268CDKD-1#PBF和LTC4268CDKD-1#TRPBF的区别 |
