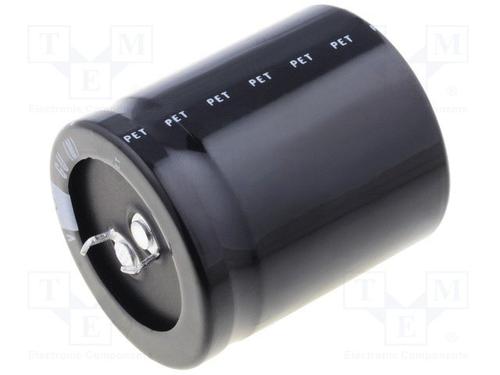

LGU1V153MELB

15mF ±20% 35V 3740mA Φ30mm

15000 µF 35 V 铝电解器 径向，Can - 卡入式 - 105°C 时为 3000 小时

得捷:
CAP ALUM 15000UF 20% 35V SNAP

立创商城:
15000uF ±20% 35V

艾睿:

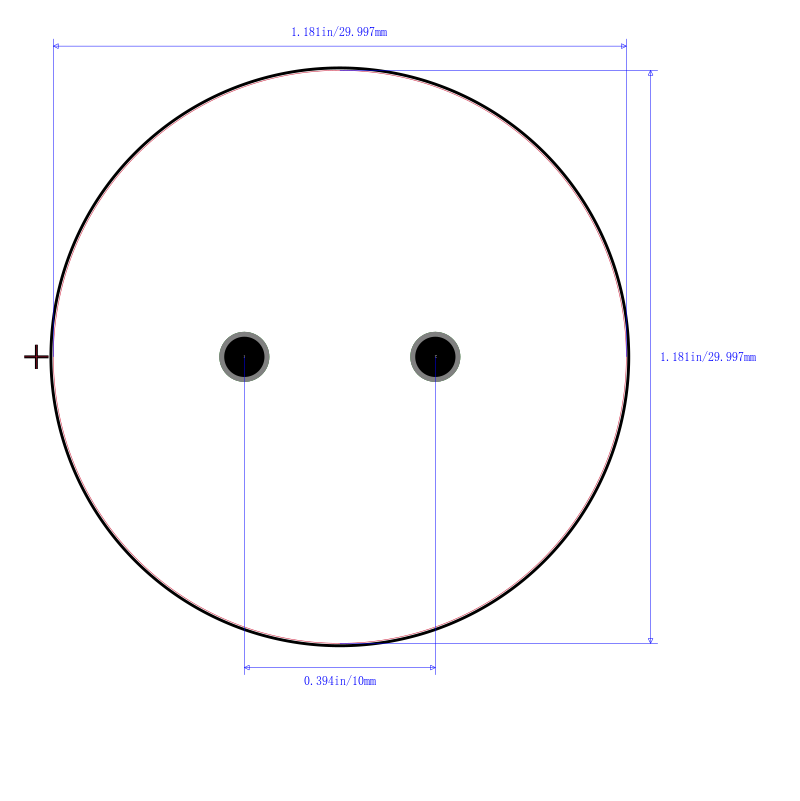

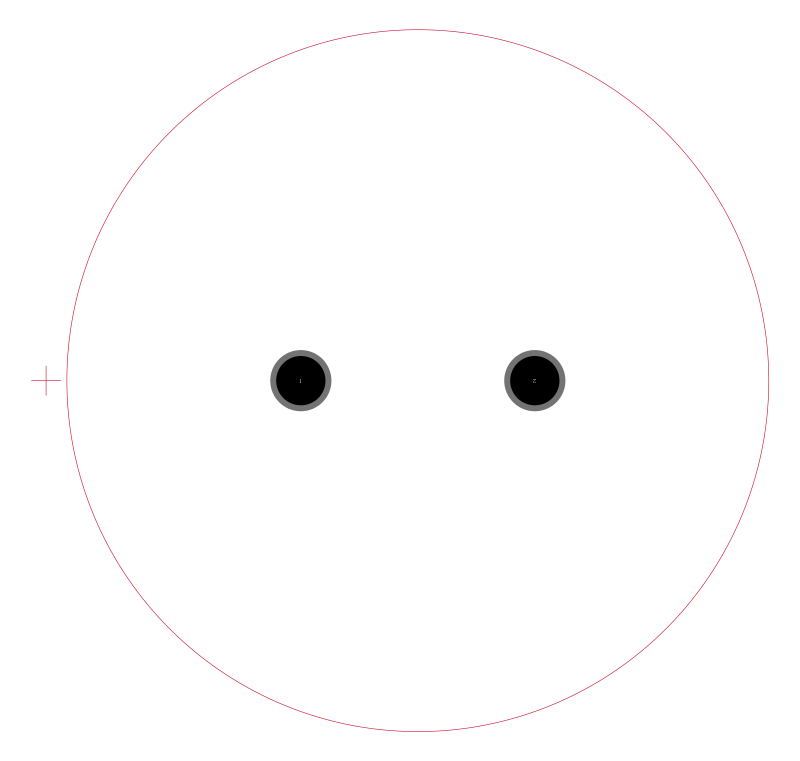

By using pure aluminum foil in the anode, this electrolytic LGU1V153MELB aluminum capacitor from Nichicon can easily filter low frequencies. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. The LGU1V153MELB aluminum electrolytic capacitor has a snap-in termination style. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. Its capacitance value is 15000uF. Its leakage current is 2170@5Min μA. This product is 45 mm tall with a diameter of 30 mm.

安富利:
Cap Aluminum 15000uF 35V 20% 30 X 45mm Snap-In 10mm 3740mA 3000h 105°C Bulk

TME:
Capacitor: electrolytic; THT; 15000uF; 35VDC; Ø30x45mm; ±20%; 3000h

Verical:
Cap Aluminum Lytic 15000uF 35V 20% 30 X 45mm Snap-In 10mm 3740mA 3000h 105C Bulk
