3.3mF ±20% 63V Φ30mm 30mm

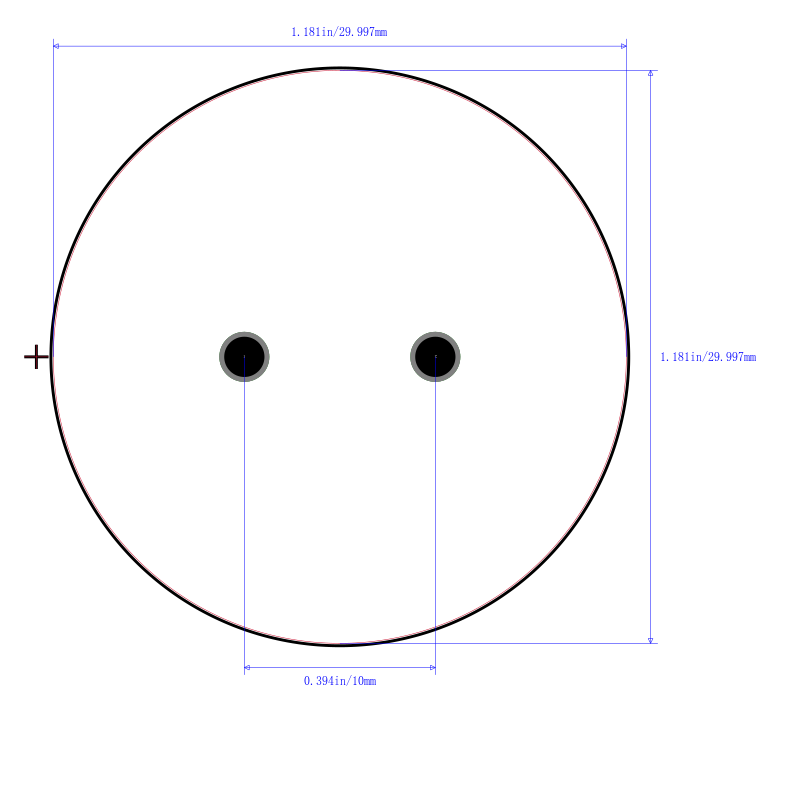

This electrolytic aluminum capacitor from has a relatively high equivalent series resistance which allows it to generate high heat for a given current level. It can withstand a voltage of 63 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 30 mm tall with a diameter of 30 mm. The LGY1J332MELB30 aluminum electrolytic capacitor has a snap-in termination style. Its capacitance value is 3300uF. It has a tolerance of 20%. Its leakage current is 1360@5Min μA. This part has a lead diameter of 0.8 mm and a pitch of 10 mm.
额定电压DC 63 V
电容 3300 µF
容差 ±20 %
产品系列 LGY
纹波电流 2200 mA
纹波电流高频 2.2A @120Hz
纹波电流低频 2.53A @50kHz
工作温度Max 105 ℃
工作温度Min 40 ℃
安装方式 Through Hole
封装 Snap-In
长度 30 mm
高度 30 mm
直径 Φ30mm
封装 Snap-In
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 50
寿命(小时) 5000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LGY1J332MELB30 Nichicon 尼吉康 | 当前型号 | 当前型号 |
LGU1J332MELB 尼吉康 | 类似代替 | LGY1J332MELB30和LGU1J332MELB的区别 |
