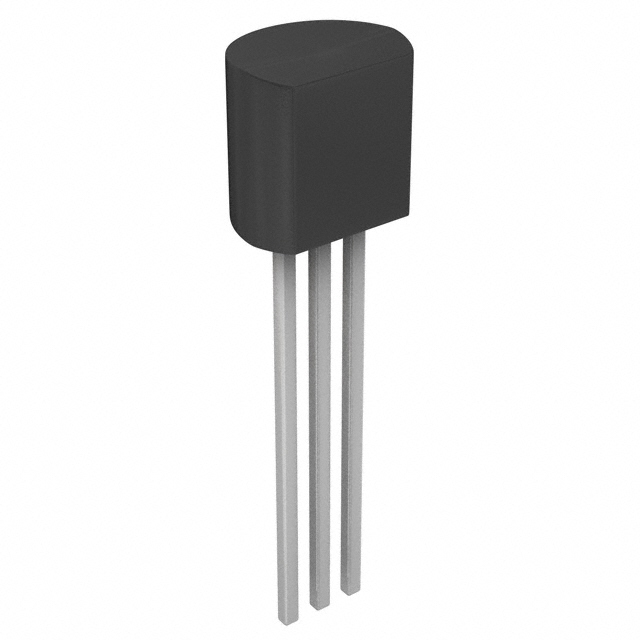

V-Ref Precision 2.5V 20mA 3Pin TO-92
Even in the event of large power supply variations, this voltage reference power management device from can produce and maintain a precise DC voltage. With an output that has a voltage of 2.5 V, this is power management at its best. It has an initial accuracy of 20mV. This voltage reference circuit supports shunt topology. Users like the load regulation of 10mV. This voltage reference circuit has a minimum operating temperature of -40 °C and a maximum of 85 °C. It runs with a maximum temperature coefficient of 20ppm/°CTyp.
容差 ±0.8 %
输出电压 2.5 V
输出电流 20 mA
通道数 1
输出电压Min 2.5 V
输出电流Max 20 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±0.8 %
安装方式 Through Hole
引脚数 3
封装 TO-226-3
封装 TO-226-3
工作温度 -40℃ ~ 85℃ TA
温度系数 ±20 ppm/℃
产品生命周期 Unknown
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT1004IZ-2.5#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1004IZ-2.5#TRPBF 凌力尔特 | 完全替代 | LT1004IZ-2.5#PBF和LT1004IZ-2.5#TRPBF的区别 |
LT1004IZ-2.5 凌力尔特 | 类似代替 | LT1004IZ-2.5#PBF和LT1004IZ-2.5的区别 |
LT1004IZ-2.5#TR 凌力尔特 | 功能相似 | LT1004IZ-2.5#PBF和LT1004IZ-2.5#TR的区别 |
