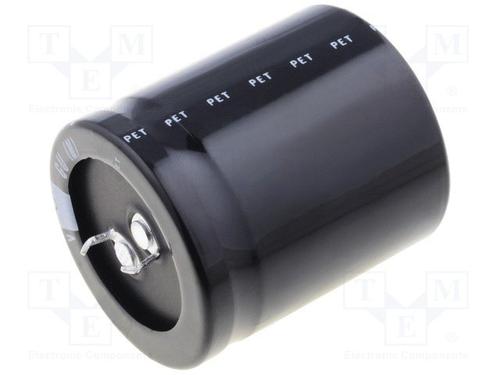

LGU1J472MELB

4.7mF ±20% 63V 2900mA Φ30mm

铝电解器 径向，Can - 卡入式 - 105°C 时为 3000 小时

得捷:
CAP ALUM 4700UF 20% 63V SNAP

立创商城:
4700uF ±20% 63V

艾睿:

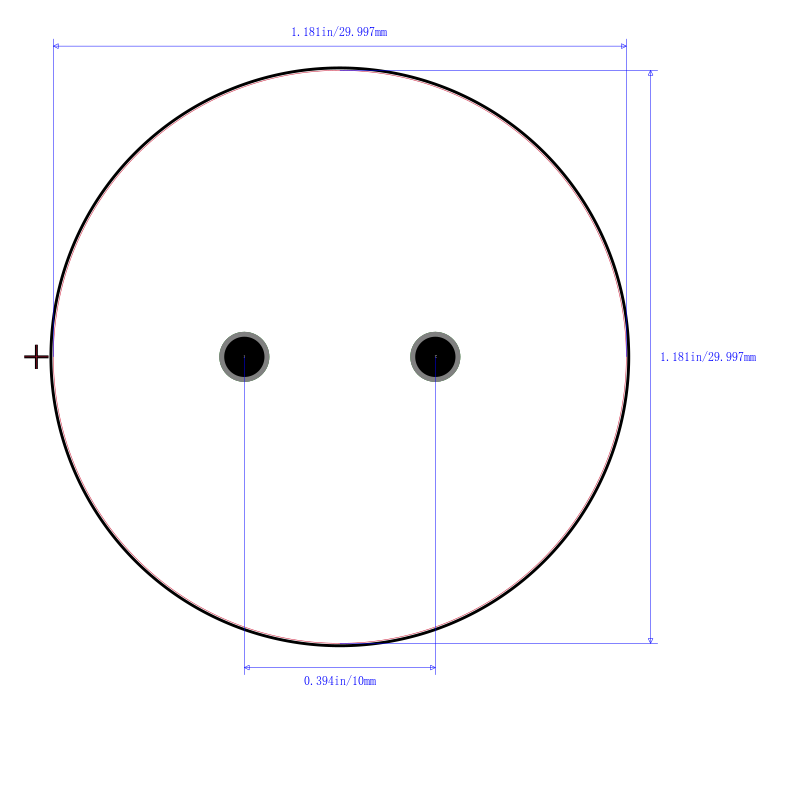

This electrolytic LGU1J472MELB aluminum capacitor from Nichicon has a relatively high equivalent series resistance which allows it to generate high heat for a given current level. It can withstand a voltage of 63 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. The LGU1J472MELB aluminum electrolytic capacitor has a snap-in termination style. Its capacitance value is 4700uF. Its leakage current is 1630@5Min μA. This product is 40 mm tall with a diameter of 30 mm. It has a tolerance of 20%.

安富利:
Cap Aluminum 4700uF 63V 20% 30 X 40mm 10mm 2900mA 3000 hr 105°C Bulk

Chip1Stop:
Cap Aluminum Lytic 4700uF 63V 20% 30 X 40mm Snap-In 10mm 2900mA 3000h 105℃ Bulk

TME:
Capacitor: electrolytic; THT; 4700uF; 63VDC; Ø30x40mm; ±20%; 3000h

Verical:
Cap Aluminum Lytic 4700uF 63V 20% 30 X 40mm Snap-In 10mm 2900mA 3000h 105C Bulk
