LLS1V103MELB

LS 系列 10000 uF 35 V 20 % 扣接 铝电解电容

**Features:

**

* Withstanding 3000 Hours Application of Rated Ripple Current at 85°C**

**

* Compliant to the RoHS directive 2002/95/EC**

**

* Snap-In Terminal Type**

Specifications:

**

* Temperature Range: –40°C to +85°C**

**

* Rated Voltage Range: 16-450 V**

**

* Rated Capacitance Range: 56 to 56000 μF**

**

* Capacitance Tolerance: ±20% at 120 Hz, 20°C

欧时:
Capacitor Electrolytic 10000uF 35V Snap

立创商城:
10000uF ±20% 35V

得捷:
CAP ALUM 10000UF 20% 35V SNAP

贸泽:
Aluminum Electrolytic Capacitors - Snap In 35volts 10000uF 85c

艾睿:

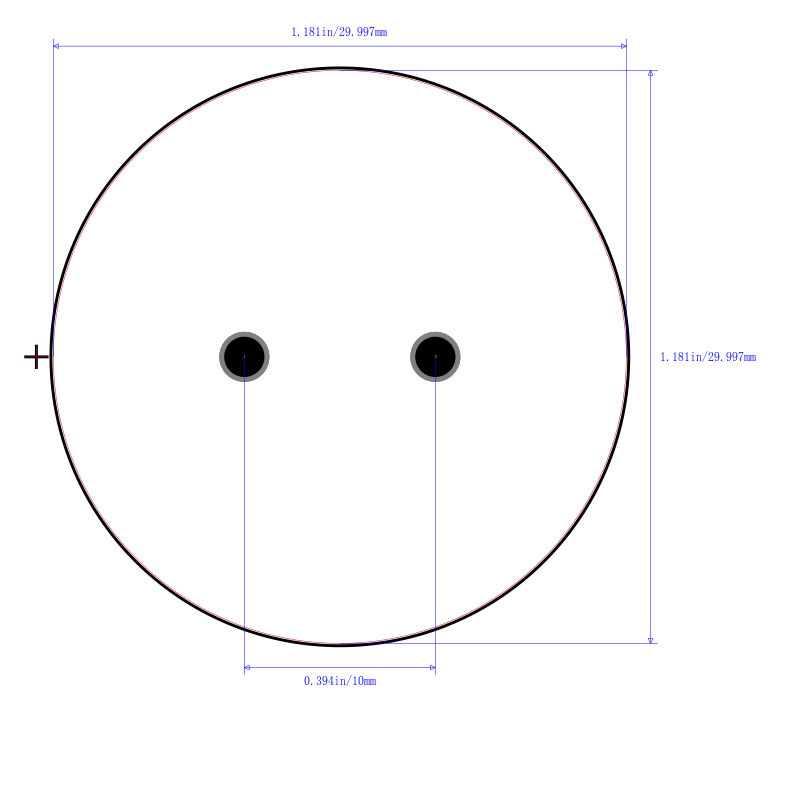

By implementing this electrolytic LLS1V103MELB aluminum capacitor from Nichicon in your electronic circuit design you will lower costs in the long run. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. Its leakage current is 1770@5Min μA. Its capacitance value is 10000uF. This product is 30 mm tall with a diameter of 30 mm. It has a tolerance of 20%. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. The LLS1V103MELB aluminum electrolytic capacitor has a snap-in termination style.

Allied Electronics:
Capacitor; Al Electrolytic; Cap 10000 uF; Tol 20%; Vol-Rtg 35 VDC; Snap-In; 30x30mm

安富利:
Cap Aluminum 10000uF 35V 20% 30 X 30mm 10mm 3610mA 3000 hr 85°C Bulk

TME:
Capacitor: electrolytic; THT; 10000uF; 35VDC; Ø30x30mm; ±20%; 3000h

Verical:
Cap Aluminum Lytic 10000uF 35V 20% 30 X 30mm Snap-In 10mm 3610mA 3000h 85C Bulk

Newark:
# NICHICON  LLS1V103MELB  Electrolytic Capacitor, Snap-in, 10000 µF, 35 V, LS Series, ± 20%, Quick Connect, Snap-In, 30 mm
