LGR2E271MELZ35

270uF ±20% 250V 1100mA Φ22mm

270µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C

立创商城:
270uF ±20% 250V

得捷:
CAP ALUM 270UF 20% 250V SNAP

艾睿:

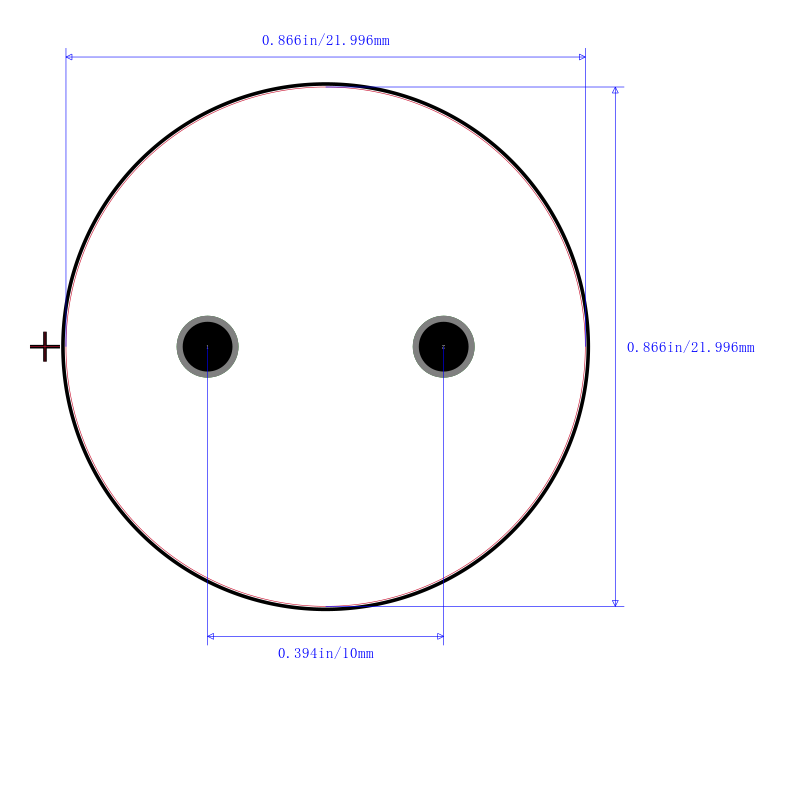

Using this electrolytic LGR2E271MELZ35 aluminum capacitor from Nichicon in your electronic circuit you&s;ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 250 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its capacitance value is 270uF. The LGR2E271MELZ35 aluminum electrolytic capacitor has a snap-in termination style. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. This product is 35 mm tall with a diameter of 22 mm. Its leakage current is 770@5Min μA.

Chip1Stop:
Cap Aluminum Lytic 270uF 250V 20% 22 X 35mm Snap-In 10mm 1100mA 10000h 105ÂÂ℃ Bulk
