150uF ±20% 450V 790mA Φ25mm
**Features:
**
* Withstanding 3000 Hours Application of Rated Ripple Current at 105°C**
**
* One Rank Smaller Case Sized Than GU Series**
Specifications:
**
* Temperature Range: –25°C to +105°C 350 to 500 VDC
得捷:
CAP ALUM 150UF 20% 450V SNAP
立创商城:
150uF ±20% 450V
欧时:
Capacitor Electrolytic 150uF 450V snapin
艾睿:

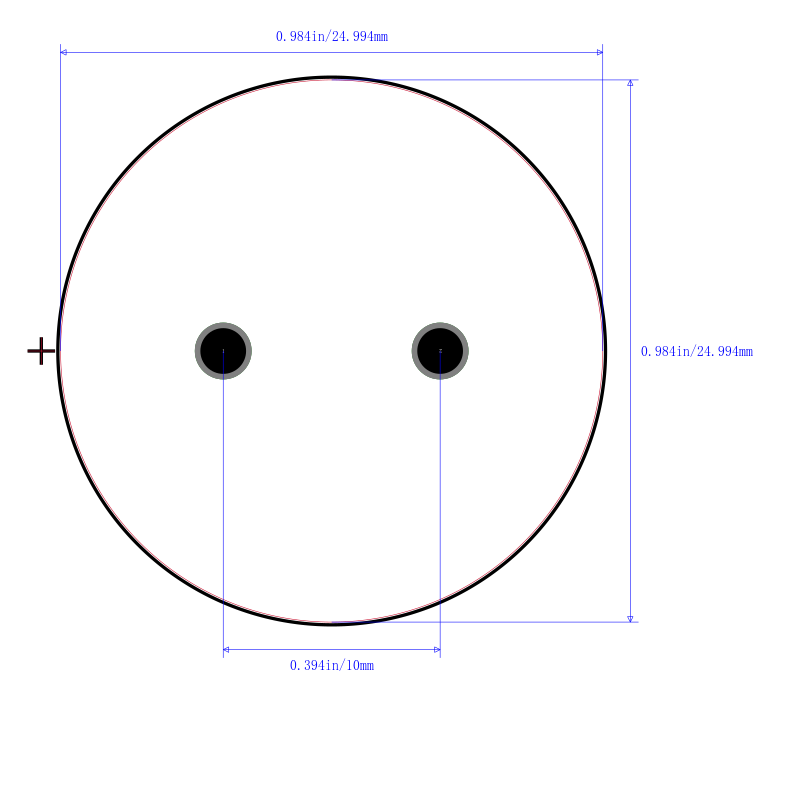

This electrolytic LGN2W151MELA30 aluminum capacitor from Nichicon has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 450 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its leakage current is 770@5Min μA. The LGN2W151MELA30 aluminum electrolytic capacitor has a snap-in termination style. This product is 30 mm tall with a diameter of 25 mm. Its capacitance value is 150uF. This part has a lead diameter of 0.8 mm and a pitch of 10 mm.
Allied Electronics:
Capacitor; Al Electrolytic; Cap 150uF, 450V, 20%, 105 Deg, 25x 30mm, snap-in
安富利:
Cap Aluminum 150uF 450V 20% 25 X 30mm 10mm 790mA 2000 hr 105°C Bulk
Verical:
Cap Aluminum Lytic 150uF 450V 20% 25 X 30mm Snap-In 10mm 790mA 3000h 105C Bulk
Newark:
# NICHICON LGN2W151MELA30 Electrolytic Capacitor, Snap-in, 150 µF, 450 V, GN Series, ± 20%, Quick Connect, Snap-In, 25 mm
额定电压DC 450 V
电容 150 µF
容差 ±20 %
产品系列 LGN
纹波电流 790 mA
纹波电流高频 790mA @120Hz
纹波电流低频 1.1297A @50kHz
工作温度Max 105 ℃
工作温度Min -25 ℃
额定电压 450 V
安装方式 Through Hole
封装 Snap-In
高度 30 mm
直径 25.0 mm
封装 Snap-In
工作温度 -25℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 160
寿命(小时) 3000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LGN2W151MELA30 Nichicon 尼吉康 | 当前型号 | 当前型号 |
LGG2W151MELA30 尼吉康 | 类似代替 | LGN2W151MELA30和LGG2W151MELA30的区别 |
LGX2W151MELA30 尼吉康 | 类似代替 | LGN2W151MELA30和LGX2W151MELA30的区别 |
LAR2W151MELA30 尼吉康 | 类似代替 | LGN2W151MELA30和LAR2W151MELA30的区别 |
