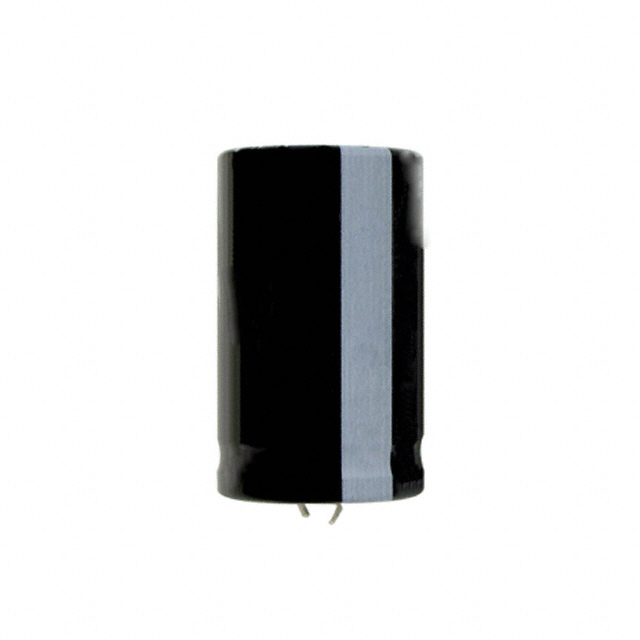

GU 系列 120 uF 450 V ±20 % 扣接 铝电解电容

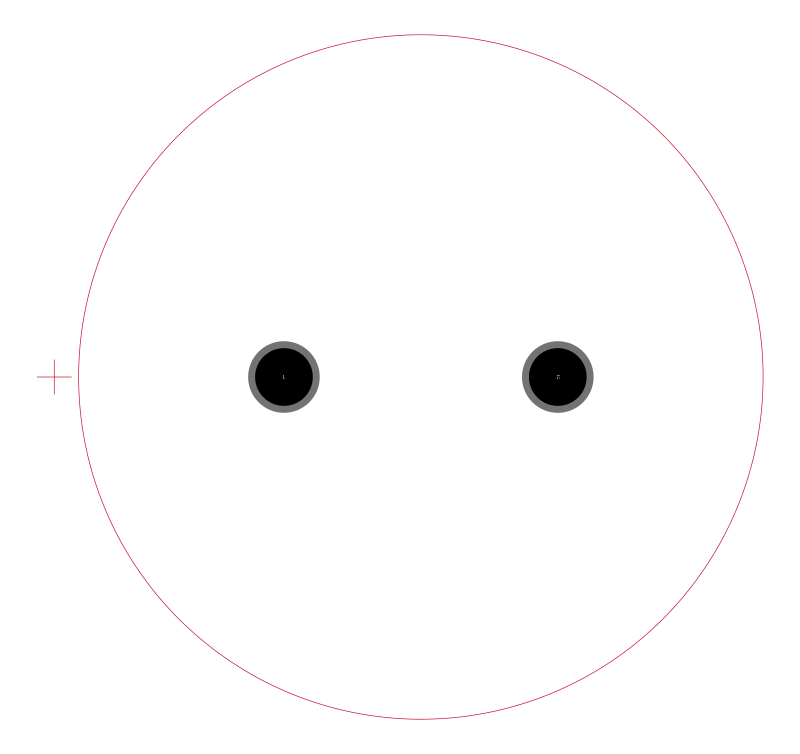

Do you need something that can let through high frequencies and filter out low frequencies? The electrolytic electrolytic capacitor from is for you. It can withstand a voltage of 450 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 30 mm tall with a diameter of 25 mm. Its capacitance value is 120uF. Its leakage current is 690@5Min μA. It has a tolerance of 20%. The LGU2W121MELA aluminum electrolytic capacitor has a snap-in termination style. This part has a lead diameter of 0.8 mm and a pitch of 10 mm.
额定电压DC 450 V
工作电压 450 VDC
电容 120 µF
容差 ±20 %
产品系列 LGU
纹波电流 800 mA
纹波电流高频 800mA @120Hz
纹波电流低频 1.144A @50kHz
额定电压 450 V
安装方式 Through Hole
封装 Snap-In
高度 30 mm
直径 25.0 mm
封装 Snap-In
工作温度 -25℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 160
寿命（小时） 3000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LGU2W121MELA Nichicon 尼吉康 | 当前型号 | 当前型号 |
LGN2W121MELA30 尼吉康 | 类似代替 | LGU2W121MELA和LGN2W121MELA30的区别 |
LGX2W121MELA30 尼吉康 | 类似代替 | LGU2W121MELA和LGX2W121MELA30的区别 |
LAR2W121MELA30 尼吉康 | 类似代替 | LGU2W121MELA和LAR2W121MELA30的区别 |
