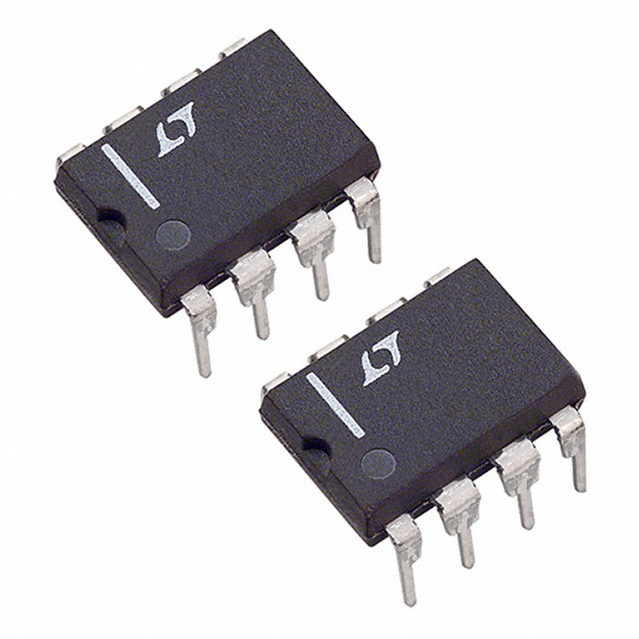

Charge Pump STPDN -18V to -2V 50mA 8Pin Plastic Dip N
The charge pump voltage doubler from is a highly-efficient tool that can give you the ability to raise or lower the voltage across components within your circuit. Its output produces a current of 50Max mA. With an output that has a voltage of -18 to -2 V, this is power management at its best. This device has a minimum operating supply voltage of 2 V and a maximum of 18 V. This inverting charge pump has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 1
输出电压 -18.0 V
输出电流 50 mA
耗散功率 500 mW
开关频率 4kHz ~ 10kHz
输入电压Max 18 V
输入电压Min 2 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 500 mW
输入电压 2V ~ 18V
安装方式 Through Hole
引脚数 8
封装 DIP-8
封装 DIP-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
