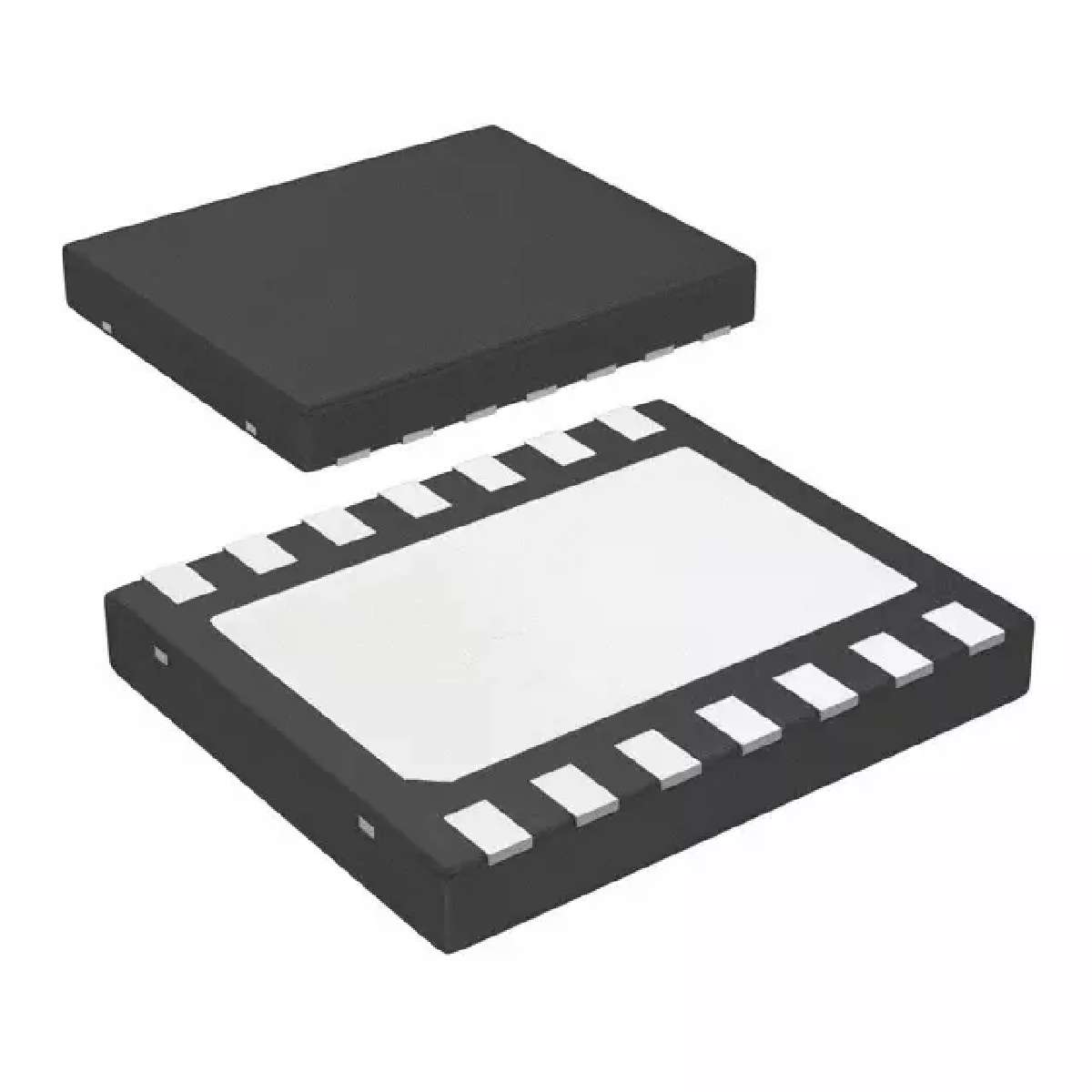

LM2670SDX-5.0/NOPB

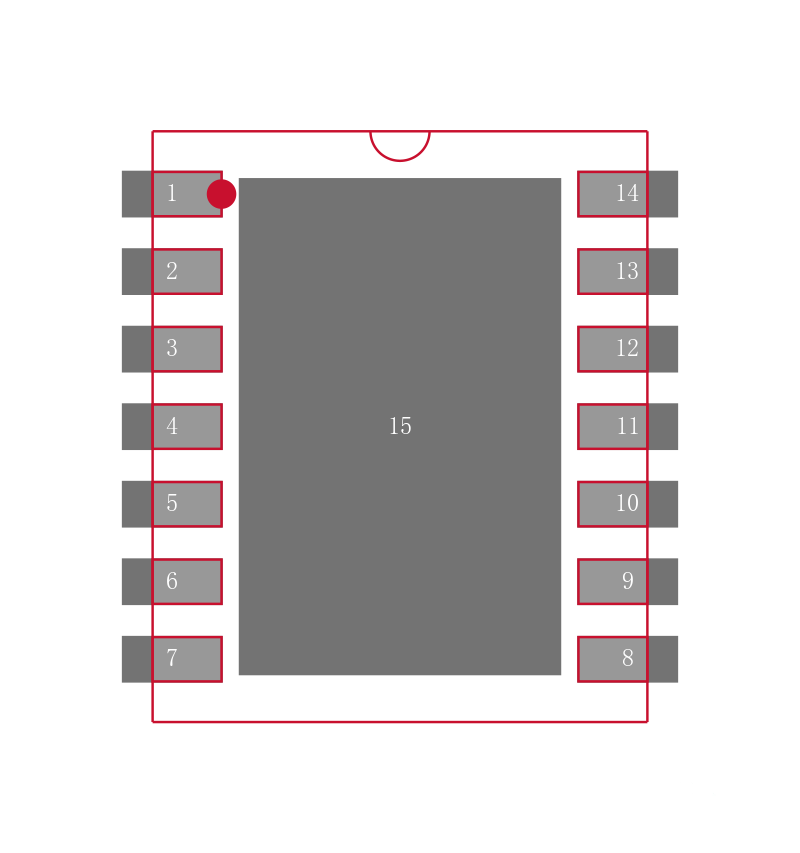

具有同步的 SIMPLE SWITCHER 高效 3A 降压电压稳压器 14-VSON -40 to 125

降压 开关稳压器 IC 正 固定 5V 1 输出 3A 14-VDFN 裸露焊盘

立创商城:
降压型 Vin=8V~40V Vout=5V 3A

德州仪器TI:
SIMPLE SWITCHER High Efficiency 3A Step-Down Voltage Regulator with Sync

得捷:
LM2670 SIMPLE SWITCHER HIGH EFFI

艾睿:
Conv DC-DC Single Step Down 8V to 40V 14-Pin VSON EP T/R

安富利:
The LM2670 series of regulators are monolithic integrated circuits which provide all of the active functions for a step-down buck switching regulator capable of driving up to 3A loads with excellent line and load regulation characteristics. High efficiency >90% is obtained through the use of a low ON-resistance DMOS power switch. The series consists of fixed output voltages of 3.3V, 5V and 12V output version.The SIMPLE SWITCHER concept provides for a complete design using a minimum number of external components. The switching clock frequency can be provided by an internal fixed frequency oscillator 260KHz or from an externally provided clock in the range of 280 kHz to 400 kHz which allows the use of physically smaller sized components. A family of standard inductors for use with the LM2670 are available from several manufacturers to greatly simplify the design process. The external Sync clock provides direct and precise control of the output ripple frequency for consistent filtering or frequency spectrum positioning.The LM2670 series also has built in thermal shutdown, current limiting and an ON/OFF control input that can power down the regulator to a low 50μA quiescent current standby condition. The output voltage is ensured to a ±2% tolerance.

Verical:
Conv DC-DC 8V to 40V Step Down Single-Out 5V 3A 14-Pin VSON EP T/R
