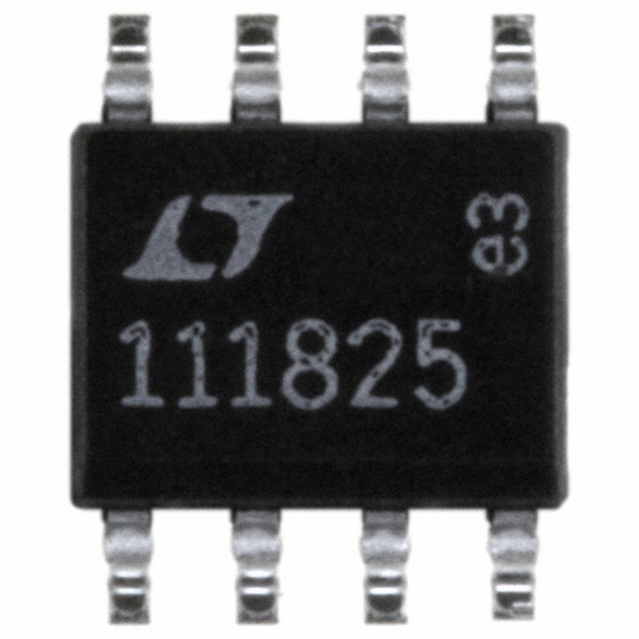

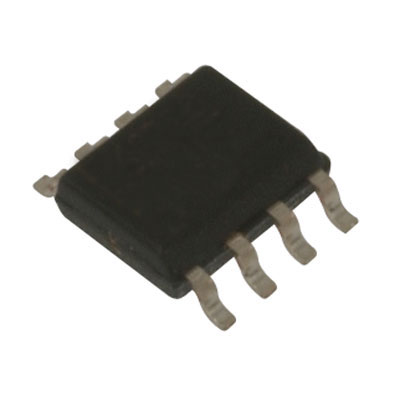

LINEAR TECHNOLOGY LT1118CS8-2.5#PBF 固定电压稳压器, LDO, 3V至15V, 1V压差, 2.5V输出, 800mA输出, SOIC-8
This LDO linear regulator developed by keeps the power stable! Its typical dropout voltage at current is 0.85@100mA|1@800mA V. This voltage regulation device"s single output can produce a current up to 0.8 A. Use this part at voltages between 3 V and 15 V. With a fixed output that has a voltage of 2.5 V, this is power management at its best. At a load regulation of 12mV and line regulation of 6mV a constant current can be produced at the output of your circuit. This voltage regulation device has a minimum operating temperature of 0 °C and a maximum of 70 °C. Its polarity is positive. The maximum dropout voltage is 1.1@100mA|1.3@800mA V.
输出接口数 1
输入电压DC 15.0V max
输出电压 2.5 V
输出电流 800 mA
供电电流 1 mA
针脚数 8
静态电流 0.6 mA
跌落电压 1 V
输入电压Max 15 V
输入电压Min 3 V
输出电压Min 2.5 V
输出电流Max 0.8 A
工作温度Max 70 ℃
工作温度Min 0 ℃
输入电压 ≤15 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
高度 1.5 mm
封装 SOIC-8
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1118CS8-2.5#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1118CS8-2.5#TRPBF 凌力尔特 | 完全替代 | LT1118CS8-2.5#PBF和LT1118CS8-2.5#TRPBF的区别 |
