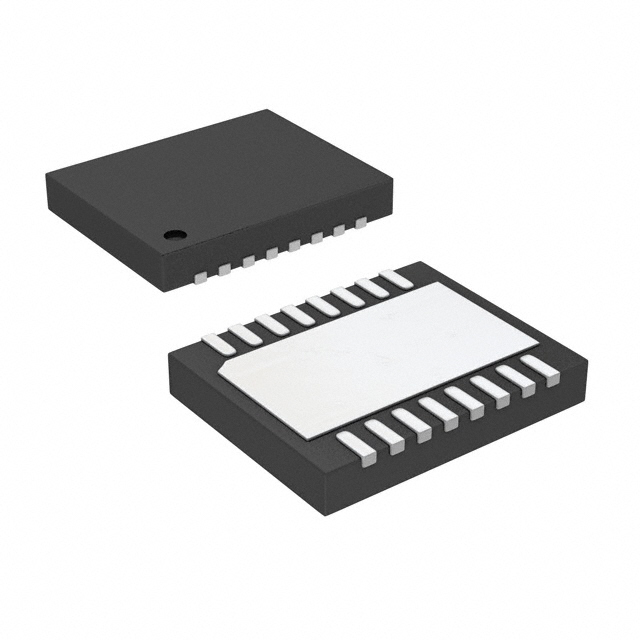

LT3055IDE#PBF

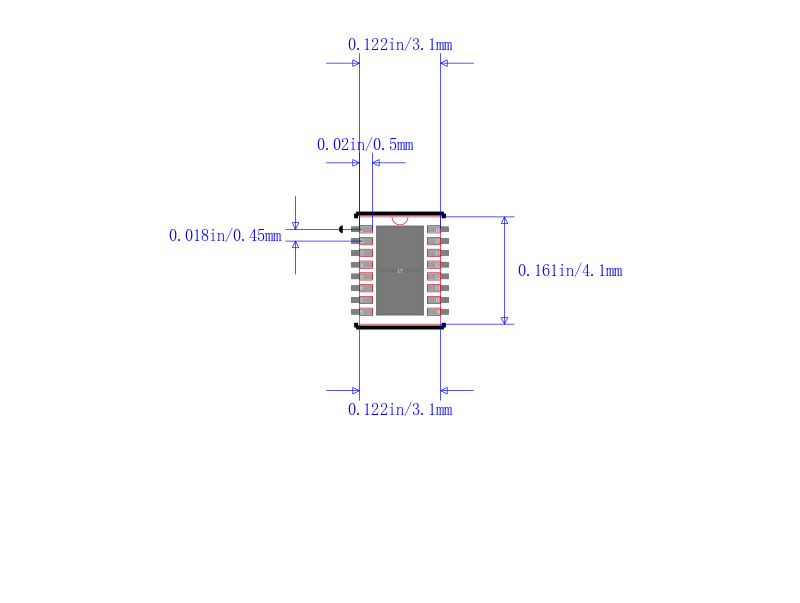

LINEAR TECHNOLOGY  LT3055IDE#PBF  电压稳压器, LDO, 可调, 2V至45V输入, 350mV压差, 600mV至40V/0.5A输出, DFN-16

The is a micro-power low noise/dropout voltage LDO Linear Regulator with precision current limit and diagnostics. It supplies 500mA of output current with a dropout voltage of 350mV. A 10nF bypass capacitor reduces output noise to 25µVRMS in a 10Hz to 100kHz bandwidth and soft starts the reference. Its ±45V input voltage rating combined with its precision current limit and diagnostic functions make the IC an ideal choice for robust, high reliability applications. A single resistor programs this current limit, accurate to ±10% over a wide input voltage and temperature range. Another resistor programs this minimum output current monitor, useful for detecting open-circuit conditions. The current monitor function sources a current equal to 1/500th of output current. Logic fault pins assert low if this is in current limit, operating below its minimum output current or is in thermal limit. PWRGD indicates output regulation. The TEMP pin indicates average die temperature.

.

Programmable minimum IOUT monitor

.

FAULT indicator - Current limit, thermal limit or minimum IOUT

.

Reverse battery and thermal limit protection

.

3.3µF Stable with low ESR, ceramic output capacitors

.

Output tolerance - ±2% Over load, line and temperature
