开关稳压器 1.5A, 200KHz Stepdn Sw Reg
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s single output can produce a current up to 3.5 A. It only needs a voltage of at least 5.5 V while not exceeding 25 V to effectively power your circuit. With an adjustable output, this is power management at its best. Maintain a constant voltage level with a line regulation of 0.03%/V. This part offers a switching frequency of 220 kHz in order to work properly. This converter has an operating temperature range of 0 °C to 125 °C.
电源电压DC 25.0V max
输出接口数 1
输出电流 1.5 A
开关频率 200 kHz
拓扑结构 Buck
输入电压Max 25 V
输入电压Min 5 V
输出电压Max 23.5 V
输出电压Min 1.21 V
输出电流Max 3.5 A
工作温度Max 125 ℃
工作温度Min 0 ℃
输入电压 5V ~ 25V
安装方式 Surface Mount

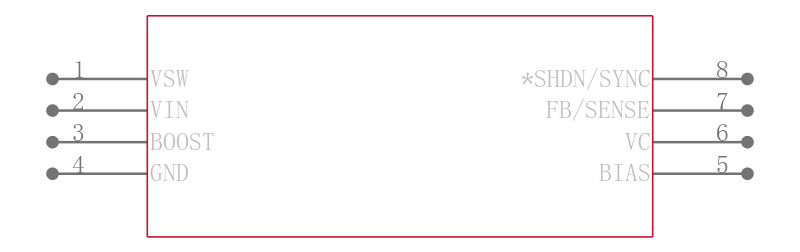

引脚数 8
封装 SOIC-8
高度 1.5 mm
封装 SOIC-8
工作温度 0℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1576CS8#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1576CS8 凌力尔特 | 完全替代 | LT1576CS8#PBF和LT1576CS8的区别 |
LT1576CS8#TRPBF 凌力尔特 | 完全替代 | LT1576CS8#PBF和LT1576CS8#TRPBF的区别 |
