SIMPLE SWITCHER® 降压调节器,LM267x 系列### 直流/直流开关调节器,Texas Instruments用于高达 75V 的宽电压输入设计,以及易用性和灵活性之间的平衡。
SIMPLE SWITCHER® 降压调节器,LM267x 系列
欧时:
### SIMPLE SWITCHER® 降压调节器,LM267x 系列### 直流/直流开关调节器,Texas Instruments用于高达 75V 的宽电压输入设计,以及易用性和灵活性之间的平衡。
立创商城:
降压型 Vin=8V~40V Vout=1.21V~37V 5A
德州仪器TI:
SIMPLE SWITCHER High Efficiency 5A Step-Down Voltage Regulator with Sync
得捷:
IC REG BUCK ADJ 5A TO220-7
贸泽:
Switching Voltage Regulators Hi Eff 5A SD Vtg Reg
艾睿:
Adjust the voltage level of your devices with this step down LM2677T-ADJ/NOPB DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 5 A. The best way to provide power to your application is by using this, which needs a voltage of at least 8 V and no higher than 40 V. With an adjustable output that has a voltage of 1.2 to 37 V, this is power management at its best. This converter is 84typ % efficient. This part offers a switching frequency of 260Typ kHz in order to work properly. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
Chip1Stop:
Conv DC-DC 8V to 40V Step Down Single-Out 1.2V to 37V 5A 7-Pin7+Tab TO-220 Tube
Verical:
Conv DC-DC 8V to 40V Synchronous Step Down Single-Out 1.2V to 37V 5A 7-Pin7+Tab TO-220 Tube
DeviceMart:
IC REG BUCK ADJ 5A TO220-7
输出接口数 1
输出电压 1.2V ~ 37V
输出电流 5 A
静态电流 4.20 mA
调节输出数 1
开关频率 260 kHz
拓扑结构 Buck
输入电压Max 40 V
输入电压Min 8 V
输出电压Max 37 V
输出电压Min 1.21 V
输出电流Max 5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 8 V
输入电压 8V ~ 40V
安装方式 Through Hole
引脚数 7

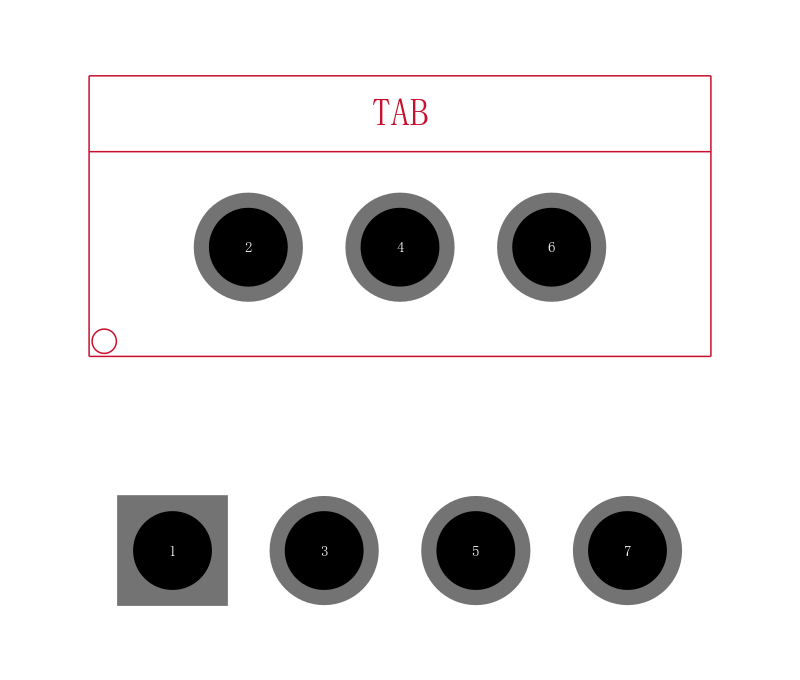

封装 TO-220-7
长度 10.16 mm
宽度 4.57 mm
高度 8.69 mm
封装 TO-220-7
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2677T-ADJ/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2676T-ADJ/NOPB 德州仪器 | 类似代替 | LM2677T-ADJ/NOPB和LM2676T-ADJ/NOPB的区别 |
LM2676T-12/NOPB 德州仪器 | 类似代替 | LM2677T-ADJ/NOPB和LM2676T-12/NOPB的区别 |
LM2677T-ADJ 德州仪器 | 类似代替 | LM2677T-ADJ/NOPB和LM2677T-ADJ的区别 |
