LM2595 SIMPLE SWITCHER®电源转换器150千赫1A降压型稳压器 LM2595 SIMPLE SWITCHER® Power Converter 150 kHz 1A Step-Down Voltage Regulator
The is a step-down Voltage Regulator provides all the active functions for a step-down buck switching regulator, capable of driving a 1A load with excellent line and load regulation. It requires a minimum number of external components, this regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The LM2595 series operates at a switching frequency of 150kHz, thus allowing smaller-sized filter components than what would be needed with lower-frequency switching regulators. A standard series of inductors are available from several different manufacturers optimized for use with the LM2595 series. This feature greatly simplifies the design of switch-mode power supplies. Other features include a ±4% tolerance on output voltage under specified input voltage and output load conditions and ±15% on the oscillator frequency. External shutdown is included, featuring typically 85µA stand-by current.
频率 150 kHz
电源电压DC 40.0V max
输出接口数 1
输出电压 5 V
输出电流 1 A

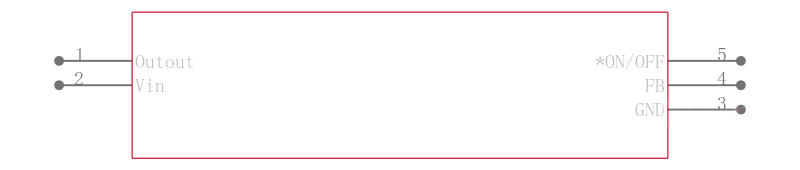

针脚数 5
静态电流 5.00 mA
调节输出数 1
开关频率 150 kHz
拓扑结构 Buck
输入电压Max 40 V
输入电压Min 4.5 V
输出电压Min 5 V
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 4.5V ~ 40V
安装方式 Through Hole
引脚数 5
封装 TO-220-5
封装 TO-220-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2595T-5.0 TI 德州仪器 | 当前型号 | 当前型号 |
LM2595T-5.0/NOPB 德州仪器 | 完全替代 | LM2595T-5.0和LM2595T-5.0/NOPB的区别 |
LM2575T-5.0/NOPB 德州仪器 | 完全替代 | LM2595T-5.0和LM2575T-5.0/NOPB的区别 |
LM2575T-5.0 德州仪器 | 完全替代 | LM2595T-5.0和LM2575T-5.0的区别 |
