LLS2Z182MELB

1.8mF ±20% 180V Φ30mm 45mm

1800 µF 180 V 铝电解器 径向，Can - 卡入式 - 85°C 时为 3000 小时

得捷:
CAP ALUM 1800UF 20% 180V SNAP

贸泽:
Aluminum Electrolytic Capacitors - Snap In 180volts 1800uF 85c 30x45x10L/S

艾睿:

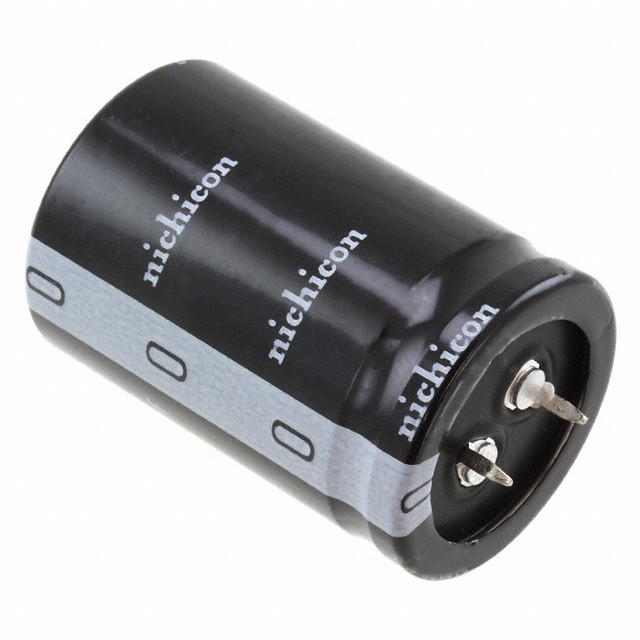

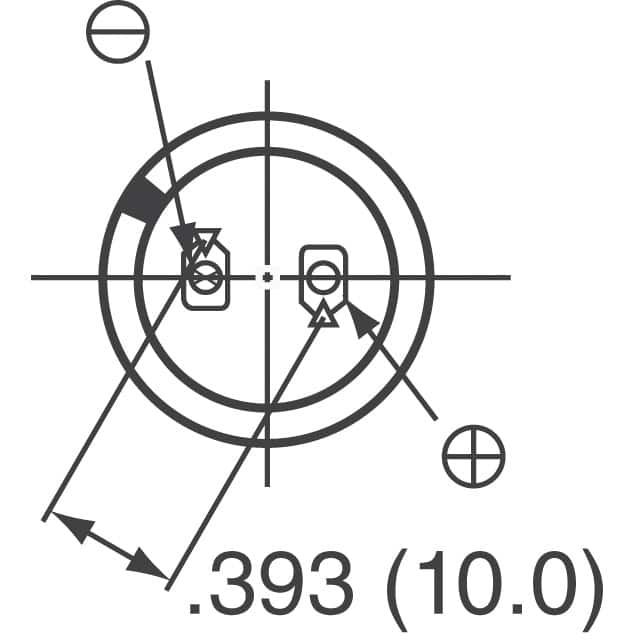

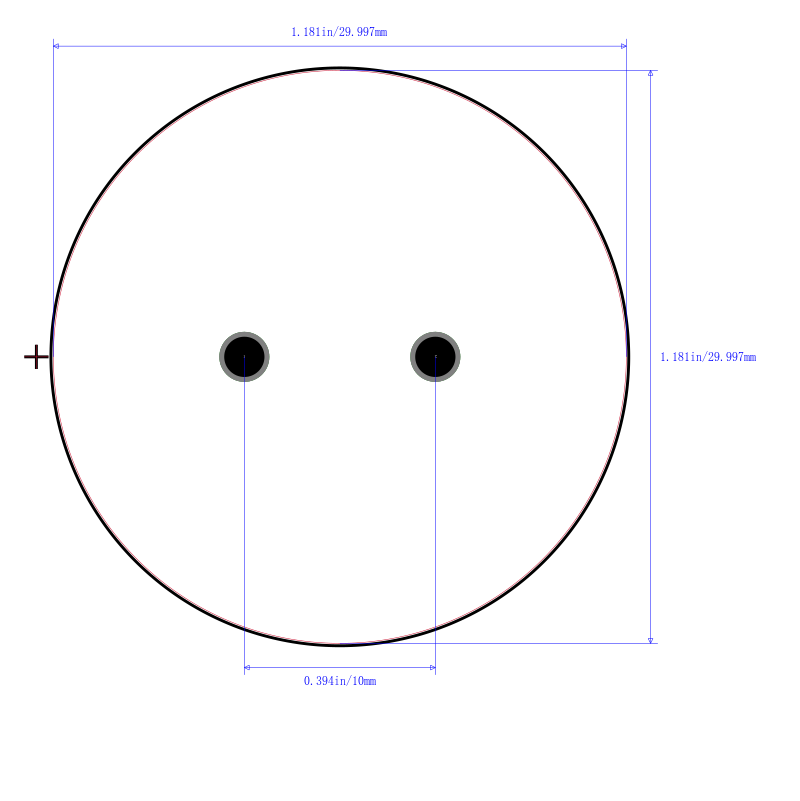

Using this electrolytic LLS2Z182MELB aluminum capacitor from Nichicon in your electronic circuit you&s;ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 180 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. The LLS2Z182MELB aluminum electrolytic capacitor has a snap-in termination style. Its leakage current is 1700@5Min μA. It has a tolerance of 20%. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. This product is 45 mm tall with a diameter of 30 mm. Its capacitance value is 1800uF.

安富利:
Cap Aluminum 1800uF 180V 20% 30 X 45mm 10mm 4550mA 3000 hr 85°C Bulk
