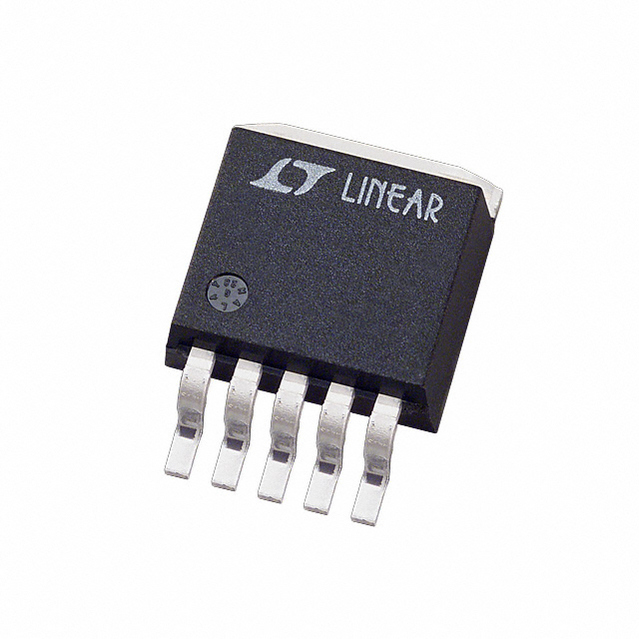

Linear Voltage Regulator IC Positive Fixed 1 Output 1.5V 1.5A 5-DDPAK
Maintain a steady voltage level with this LDO linear regulator from . Its typical dropout voltage at current is 0.02@1mA|0.1@100mA|0.19@500mA|0.34@1.5A V. This voltage regulation device"s single output can produce a current up to 1.5 A. The best way to provide power to your application is by using this, which needs a voltage of at least 1.9 V and no higher than 20 V. With a fixed output that has a voltage of 1.5 V, this is power management at its best. A load regulation of 9mV and line regulation of 6mV is necessary for providing a constant voltage level at your output. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its polarity is positive. The maximum dropout voltage is 0.06@1mA|0.17@100mA|0.27@500mA|0.45@1.5A V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输入电压DC 20.0V max
输出电压 1.5 V
输出电流 1.5 A
跌落电压 0.34V @1.5A
输入电压Max 20 V
输入电压Min 1.9 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 2.1V ~ 20V
安装方式 Surface Mount
引脚数 6
封装 TO-263-6
高度 4.57 mm
封装 TO-263-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1963AEQ-1.5#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1963AEQ-1.5#PBF 凌力尔特 | 类似代替 | LT1963AEQ-1.5#TRPBF和LT1963AEQ-1.5#PBF的区别 |
