LTC3539/LTC3539-2 - 2A, 1MHz/2MHz Synchronous Step-Up DC-DC Converters
Adjust the voltage level of your devices with this synchronous step up DC to DC converter from . This converter"s single output can produce a current up to 2 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 0.5 V that does not exceed 5 V. With an adjustable output that has a voltage of 1.5 to 5.25 V, this is power management at its best. This converter is 94 % efficient. This part offers a switching frequency of 1300 kHz in order to work properly. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This converter has an operating temperature range of -40 °C to 85 °C.
输出接口数 1
输出电压 1.5.5.25 V
输出电流 2.6 A
开关频率 1 MHz
输入电压Max 5 V
输入电压Min 0.5 V
输出电压Max 5.25 V
输出电压Min 1.5 V
输出电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 0.5.5 V
安装方式 Surface Mount

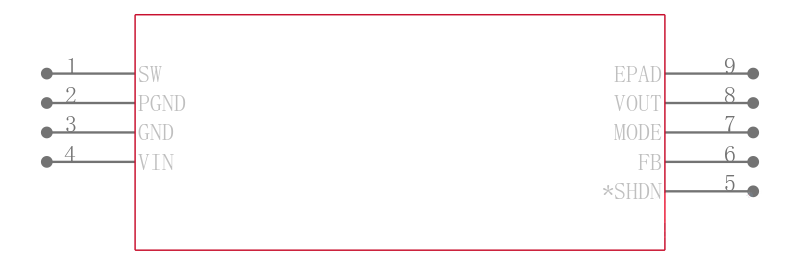

引脚数 8

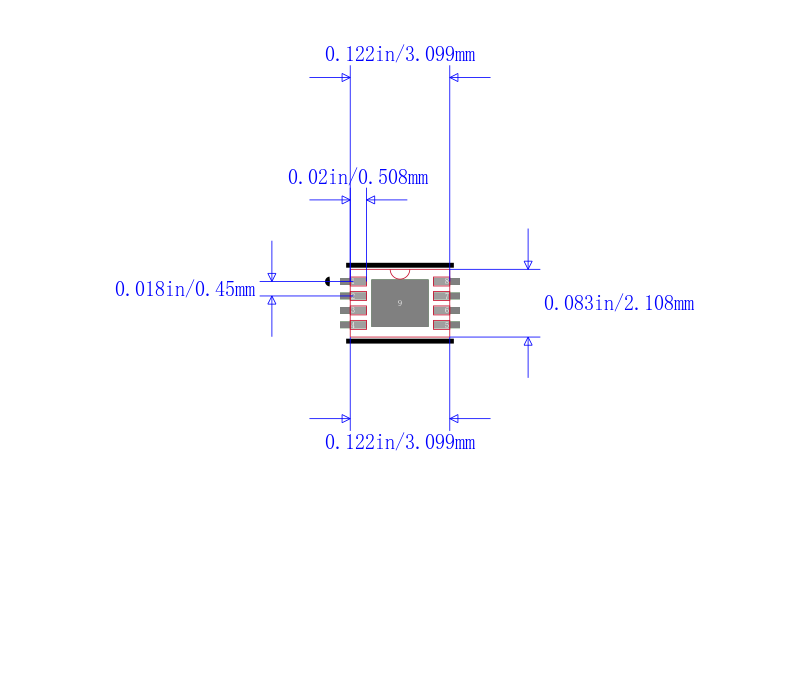

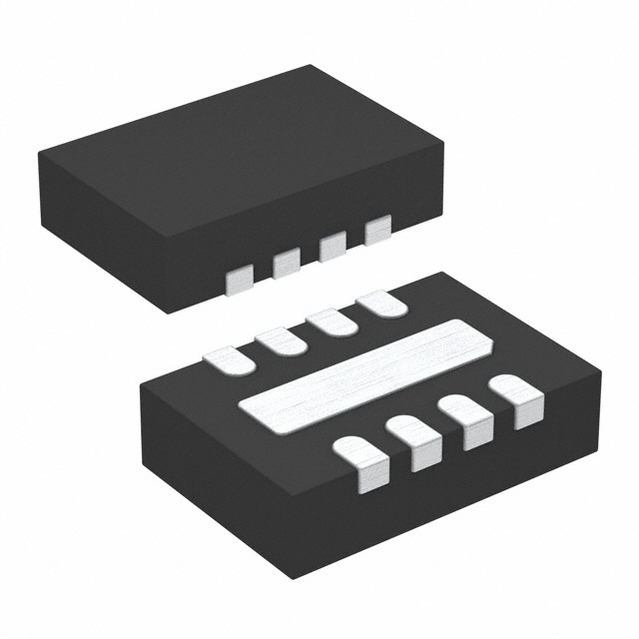

封装 DFN-8
高度 0.75 mm
封装 DFN-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown

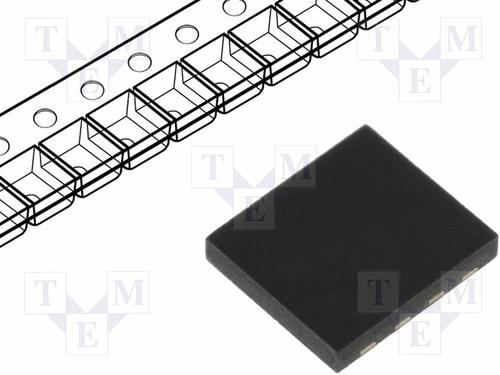

包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3539EDCB#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
