LT4276CHUFD#PBF

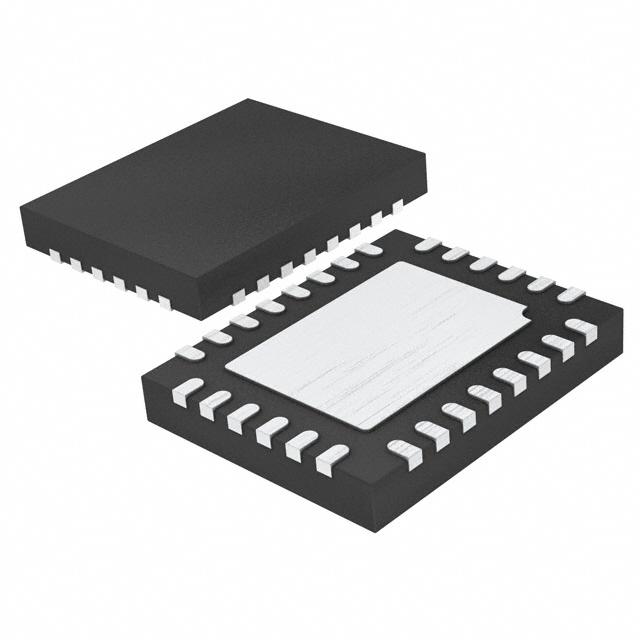

LINEAR TECHNOLOGY LT4276CHUFD#PBF Power Over Ethernet POE Controller, 60V/2mA, 300kHz Switch/Clock, QFN-28

The is an LTPoE++/PoE+/PoE powered device PD forward/flyback controller in 28 pin QFN package. This device is a pin to pin compatible family of IEEE 802.3 and LTPoE++ powered device PD controllers. It includes an isolated switching regulator controller capable of synchronous operation in both forward and flyback topologies with auxiliary power support. The LT4276C is a fully 802.3af compliant 13W type 1 PoE PD and no opto isolator required for flyback operation. The device supports both forward and flyback power supply topologies and can be configurable for a wide range of PoE applications. Auxiliary input voltage can be accurately sensed with a resistor divider connected to AUX pin. The LT4276C utilizes an external, low RDS ON N channel MOSFET for hot swap function which maximizes power delivery, efficiency, reduces heat dissipation and eases thermal design.

.

Superior surge protection 100V absolute maximum

.

Auxiliary power support as low as 9V

.

Maximum PD powered device power of 13W

.

External hot swap N channel MOSFET for lowest power dissipation and highest system efficiency

.

Greater than 94% end to end efficiency with LT4321 ideal bridge

.

Vin operating voltage is 60V VPORT, HSSRC

.

Switching frequency of 300KHz at ROSC = 45.3Kohm to GND

.

Maximum PG duty cycle is 66%

.

Operating junction temperature range from -40°C to 125°C
