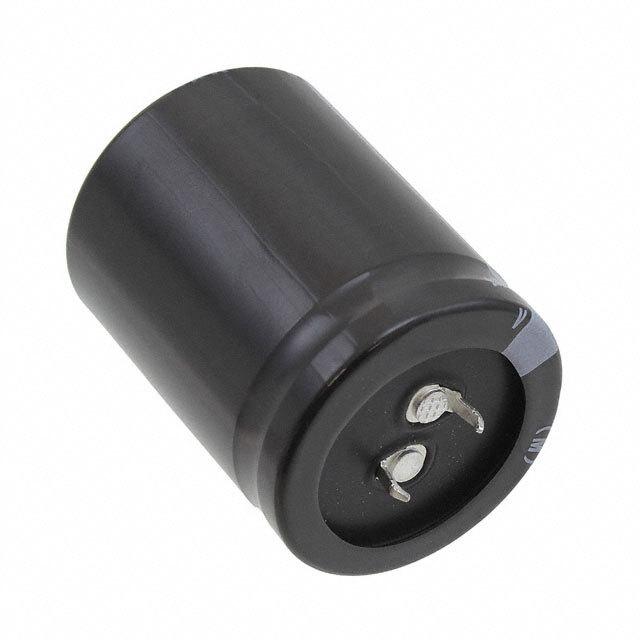

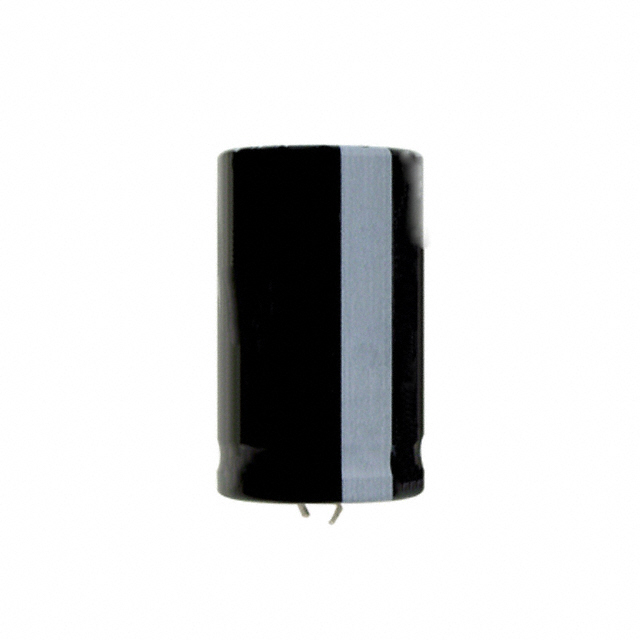

LGU2E122MELC

GU 系列 1200 uF 250 V 20 % 扣接 铝电解电容

1200µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C

立创商城:
1200uF ±20% 250V

得捷:
CAP ALUM 1200UF 20% 250V SNAP

贸泽:
铝质电解电容器-管理单元 250volts 1200uF 35x45 20% 10LS

艾睿:

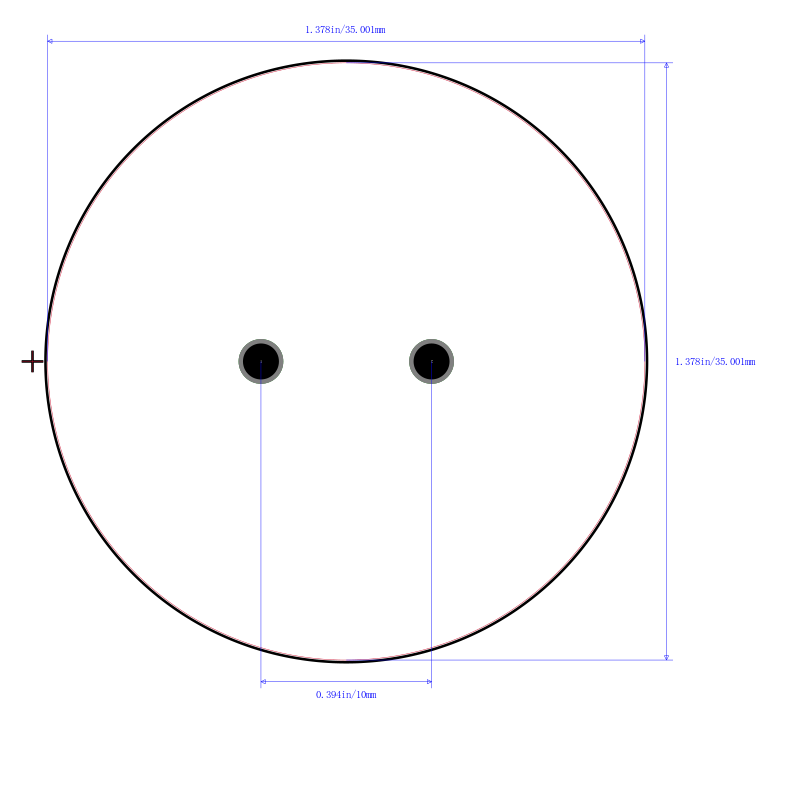

Do you need something that can let through high frequencies and filter out low frequencies? The electrolytic LGU2E122MELC electrolytic capacitor from Nichicon is for you. It can withstand a voltage of 250 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The LGU2E122MELC aluminum electrolytic capacitor has a snap-in termination style. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. It has a tolerance of 20%. This product is 45 mm tall with a diameter of 35 mm. Its leakage current is 1640@5Min μA. Its capacitance value is 1200uF.

安富利:
Cap Aluminum 1200uF 250V 20% 35 X 45mm 10mm 2600mA 3000 hr 105°C Bulk

TME:

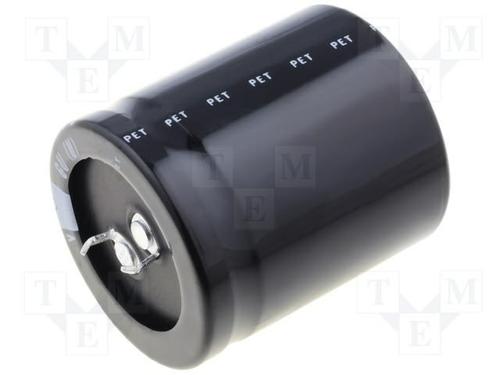

Capacitor: electrolytic; THT; 1200uF; 250VDC; Ø35x45mm; ±20%; 3000h

Verical:
Cap Aluminum Lytic 1200uF 250V 20% 35 X 45mm Snap-In 10mm 2600mA 3000h 105C Bulk
