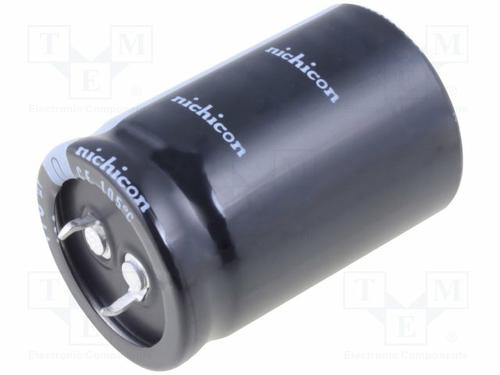

LGX2E102MELC35

1mF ±20% 250V 2380mA Φ35mm

1000µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C

立创商城:
1000uF ±20% 250V

得捷:
CAP ALUM 1000UF 20% 250V SNAP

贸泽:
Aluminum Electrolytic Capacitors - Snap In 250volts 1000uF 105c 35x35x10L/S

艾睿:

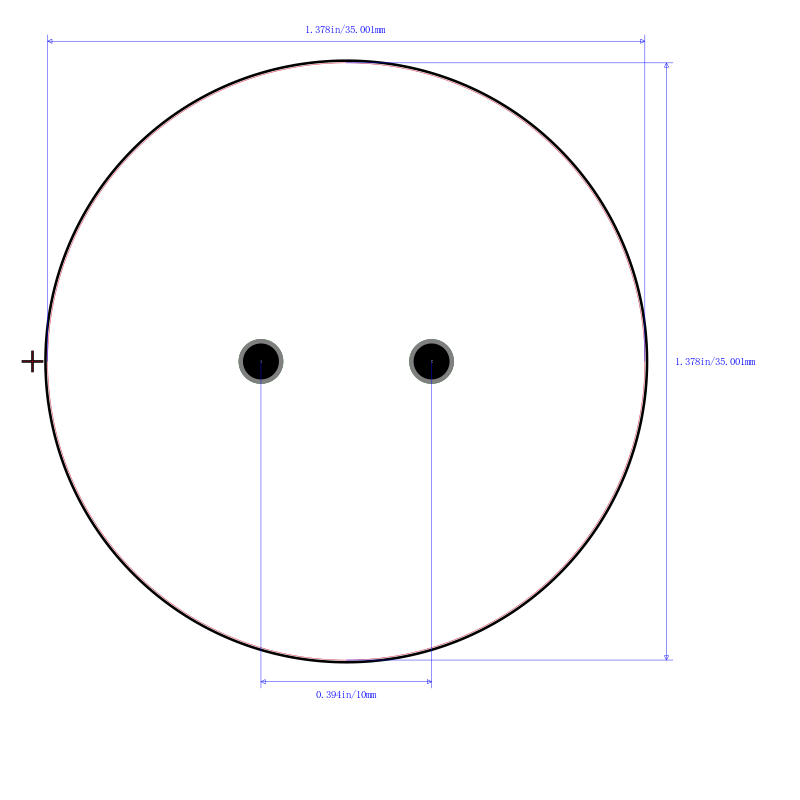

Lower the cost of your electronic circuit design by implementing this electrolytic LGX2E102MELC35 aluminum capacitor from Nichicon. It can withstand a voltage of 250 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 1500@5Min μA. It has a tolerance of 20%. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. The LGX2E102MELC35 aluminum electrolytic capacitor has a snap-in termination style. Its capacitance value is 1000uF. This product is 35 mm tall with a diameter of 35 mm.

安富利:
Cap Aluminum 1000uF 250V 20% 35 X 35mm Snap-In Aluminum Cylindrical Can 10mm 2380mA 5000 hr 105°C Bulk

TME:
Capacitor: electrolytic; THT; 1000uF; 250VDC; Ø35x35mm; ±20%; 5000h

Verical:
Cap Aluminum Lytic 1000uF 250V 20% 35 X 35mm Snap-In 10mm 2380mA 5000h 105C Bulk
