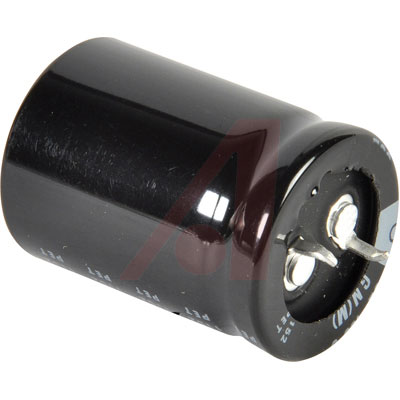

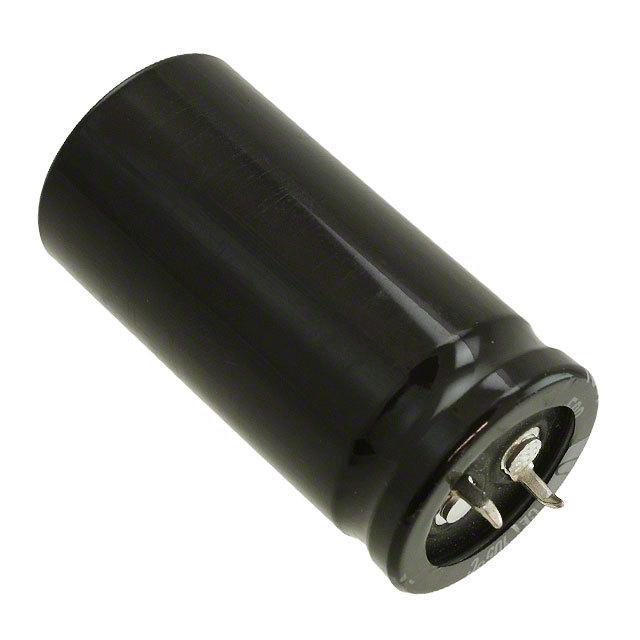

LGN2H181MELA50

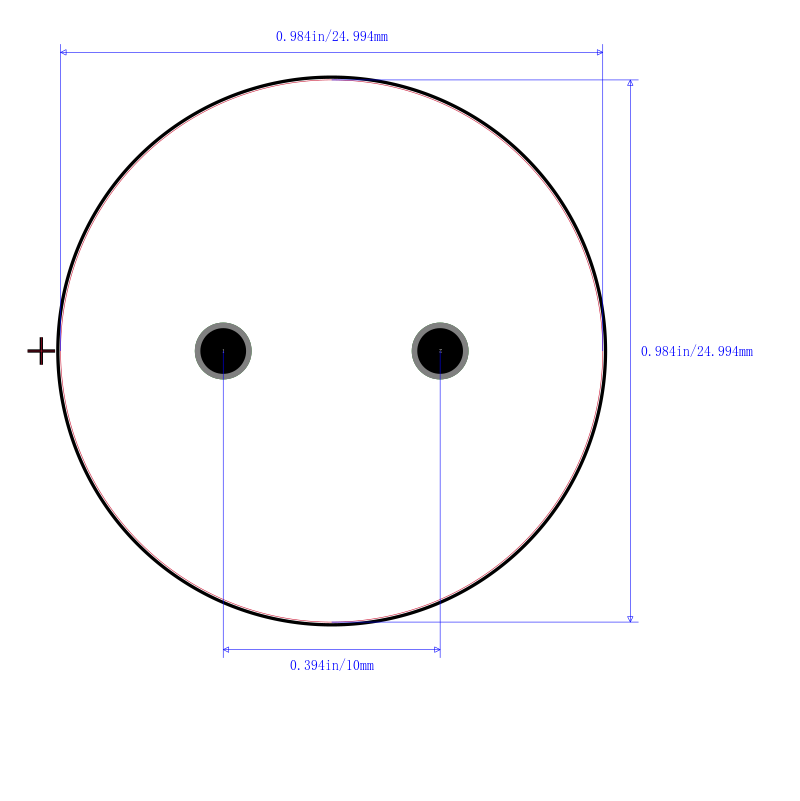

180uF ±20% 500V Φ25mm 50mm

**Features:

**

* Withstanding 3000 Hours Application of Rated Ripple Current at 105°C**

**

* One Rank Smaller Case Sized Than GU Series**

Specifications:

**

* Temperature Range: –25°C to +105°C 350 to 500 VDC

得捷:
CAP ALUM 180UF 20% 500V SNAP

欧时:
Capacitor Electrolytic 180uF 500V SnapIn

立创商城:
180uF ±20% 500V

Allied Electronics:
Capacitor; Al Electrolytic; Cap 180 uF; Tol 20%; Vol-Rtg 500 VDC; Snap-In; 25x50mm

安富利:
Cap Aluminum 180uF 500V 20% 25 X 50mm Snap-In Aluminum Cylindrical Can 10mm 900mA 3000 hr 105°C Bulk

Newark:
# NICHICON  LGN2H181MELA50  Electrolytic Capacitor, Snap-in, 180 µF, 500 V, GN Series, ± 20%, Quick Connect, Snap-In, 25 mm
