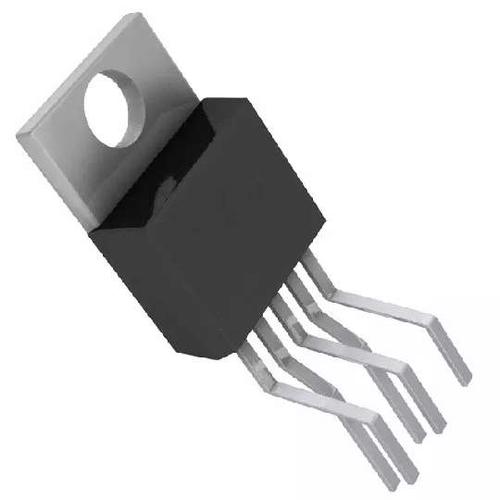

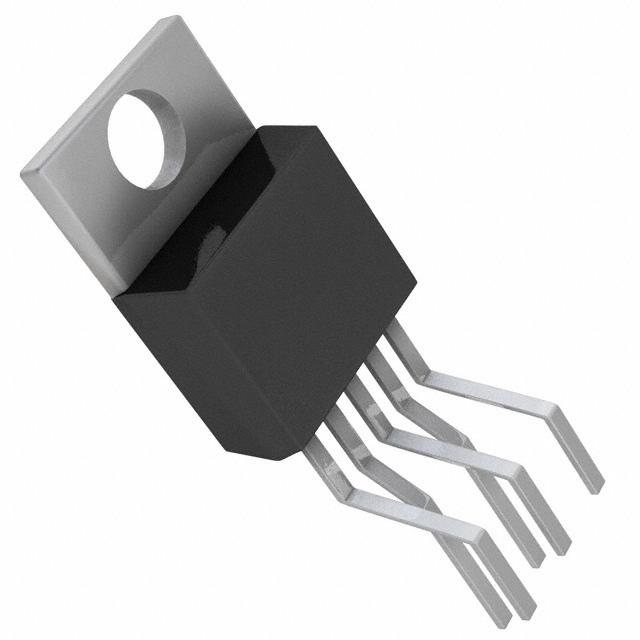

LDO Regulator Neg -5V 0.5A Automotive 5Pin5+Tab TO-220 Tube
Never worry about components seeing unstable voltages again by implementing this LDO linear regulator manufactured by . It has an overall accuracy of ±1.5 %. Its typical dropout voltage at current is 0.1@25mA|0.26@100mA|0.18@100mA|0.5@500mA|0.33@300mA|0.3@200mA V. This voltage regulation device"s single output can produce a current up to 0.5 A. It only needs a voltage of at least -4.3 V while not exceeding -20 V to effectively power your circuit. With a fixed output that has a voltage of -5 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.35% and line regulation of 0.015%/V. This voltage regulation device has a minimum operating temperature of 0 °C and a maximum of 125 °C. Its polarity is negative. The maximum dropout voltage is 0.2@25mA|0.45@100mA|0.45@200mA|0.5@300mA|0.7@500mA|0.26@100mA V.
输出接口数 1
输入电压DC -20.0 V max
输出电流 500 mA
跌落电压 0.33V @300mA,0.1V @25mA,0.26V @100mA,0.18V @100mA,0.5V @500mA,0.3V @200mA
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min 0 ℃
精度 ±1.5 %
安装方式 Through Hole
引脚数 5
封装 TO-220-5
高度 9.4 mm
封装 TO-220-5
工作温度 0℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1175CT-5#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1175IST-5 凌力尔特 | 完全替代 | LT1175CT-5#PBF和LT1175IST-5的区别 |
