LGX2W331MELC35

330uF 450V 盒装

铝电解器 径向，Can - 卡入式 - 105°C 时为 5000 小时

艾睿:

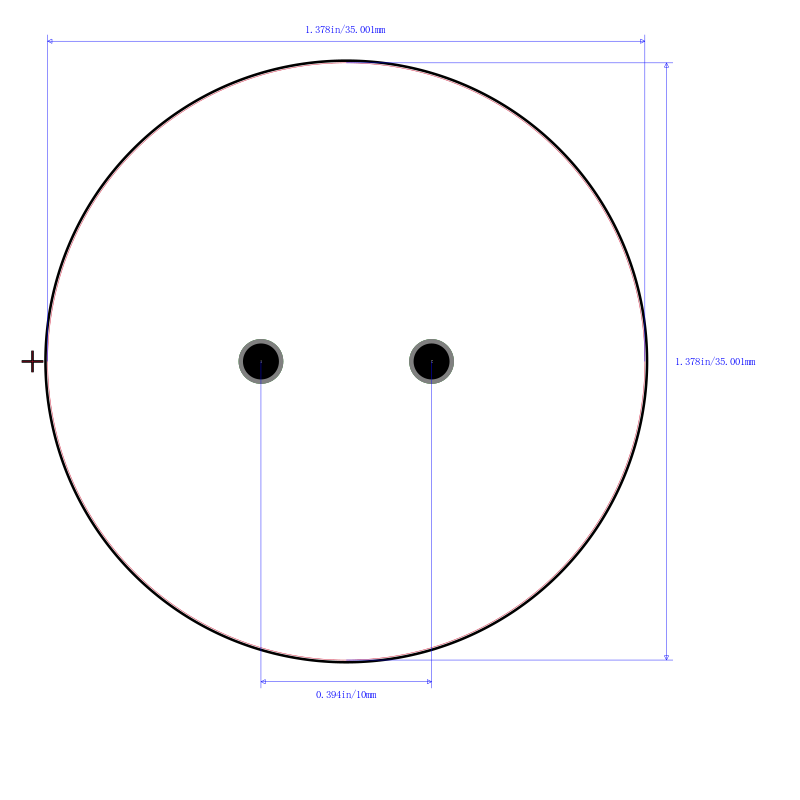

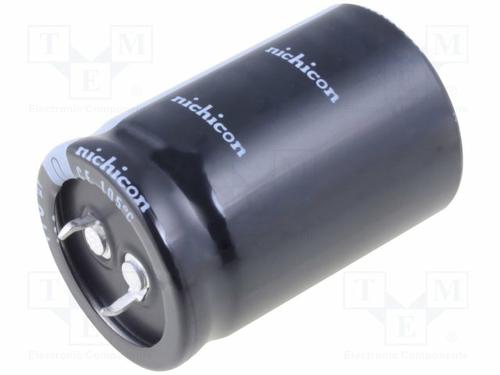

Lower the cost of your electronic circuit design by implementing this electrolytic LGX2W331MELC35 aluminum capacitor from Nichicon. It can withstand a voltage of 450 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 35 mm tall with a diameter of 35 mm. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. The LGX2W331MELC35 aluminum electrolytic capacitor has a snap-in termination style. Its leakage current is 1150@5Min μA. It has a tolerance of 20%. Its capacitance value is 330uF.

安富利:
Cap Aluminum 330uF 450V 20% 35 X 35mm 10mm 1390mA 5000 hr 105°C Bulk

TME:
Capacitor: electrolytic; THT; 330uF; 450VDC; Ø35x35mm; ±20%; 5000h
