LGU2E152MELC

1.5mF ±20% 250V 3000mA Φ35mm

1500µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C

立创商城:
1500uF ±20% 250V

得捷:
CAP ALUM 1500UF 20% 250V SNAP

艾睿:

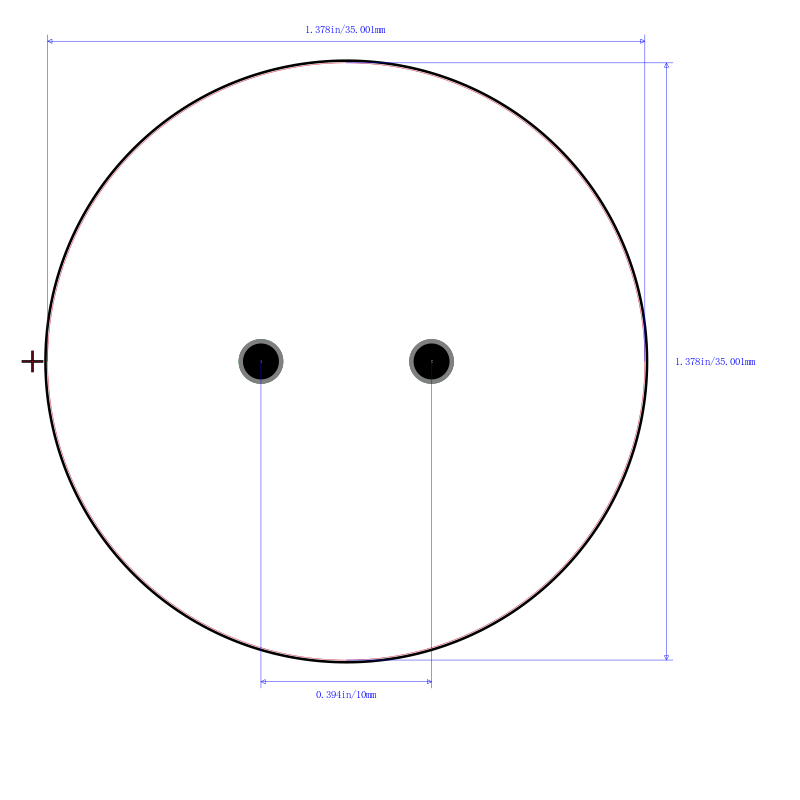

This electrolytic LGU2E152MELC aluminum capacitor from Nichicon has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 250 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 1500uF. The LGU2E152MELC aluminum electrolytic capacitor has a snap-in termination style. This product is 50 mm tall with a diameter of 35 mm. It has a tolerance of 20%. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. Its leakage current is 1830@5Min μA.

安富利:
Cap Aluminum 1500uF 250V 20% 35 X 50mm 10mm 3000mA 3000 hr 105°C Bulk

Chip1Stop:
Cap Aluminum Lytic 1500uF 250V 20% 35 X 50mm Snap-In 10mm 3000mA 3000h 105℃ Bulk

TME:
Capacitor: electrolytic; THT; 1500uF; 250VDC; Ø35x50mm; ±20%; 3000h

Verical:
Cap Aluminum Lytic 1500uF 250V 20% 35 X 50mm Snap-In 10mm 3000mA 3000h 105C Bulk
